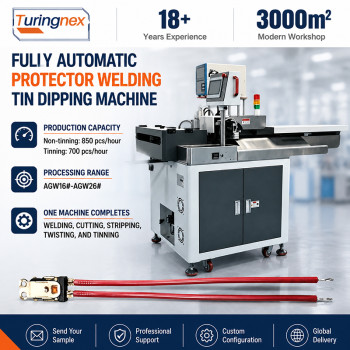

TR‑WK02 Fully‑Automatic Protector Welding Machine

group name: Protector Welding Machine

Min Order: 1 piece

brand name: Turing

model: TR‑WK02

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 03 Sep 2026 15:52:33 GMT

contact supplier

Paramtents

Power Main machine 220V, Inverter power supply 380V
Applicable Wire Diameter AWG16#‑AWG26#, 0.8mm, 1mm bare copper wire
Dimensions L2400mm × W850mm × H1600mm
Production Capacity Non‑tinning: 850 pcs/hour; Tin‑dipping: 700 pcs/hour

Packging & Delivery

Min Order1 piece

Briefing

TR‑WK02 Fully‑Automatic Protector Welding Machine. Fixed‑length cutting, single‑end / double‑end stripping, protector double‑wire welding, single‑end wire‑twisting & tin‑dipping, wire pulling

Detailed

TR‑WK02 Fully‑Automatic Protector Welding Machine

Product Highlights

1. Automatic Feeding

The protector is automatically sorted and fed by a vibrating tray for high‑level automation.

2. Multi‑level Inspection Protection

Equipped with protector presence detection, double‑wire pre‑inspection and welding quality inspection. It rejects defective products caused by material shortage, circuit faults and poor welding to reduce defect rates.

3. Independent Welding for Dual Pins

Dual‑pin independent resistance welding allows separate adjustment of welding parameters for each pin, delivering firm and consistent welding joints.

4. Precise Positioning & Tin Coating

Servo translation mechanism ensures accurate welding positioning. Rotating‑workpiece tin‑dipping achieves uniform tin coating and consistent tin‑dipping performance.

5. Wide Processing Compatibility

Compatible with AGW16#‑AGW26# wires and 0.8 mm / 1 mm bare copper wires. Cutting length ranges from 20 mm to 1200 mm. It completes multiple processes including cutting, stripping, welding, wire twisting and tin‑dipping.

6. High Cutting Accuracy

Segmented high‑precision cutting control. For lengths under 500mm: accuracy of 0.5mm + 0.2% of set length; for lengths over 1000mm: accuracy of 1mm + 0.2% of set length for reliable dimensional processing.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

Equipment Name	TR‑WK02 Fully‑Automatic Protector Welding Machine
Power	Main machine 220V, Inverter power supply 380V
Size	L2400mm × W850mm × H1600mm
Production Capacity	Non‑tinning: 850 pcs/hour; Tin‑dipping: 700 pcs/hour
Processing Range	AWG16#‑AWG26#, 0.8mm, 1mm bare copper wire
Cutting Accuracy	0.5mm + 0.2% of set length for length below 500mm; 1mm + 0.2% of set length for length above 1000mm
Cutting Length	20‑1200mm
Stripping Length	Wire head: 0‑12mm; Wire tail: 0‑13mm
Control Mode	Motion control card
Functions	Fixed‑length cutting, single‑end / double‑end stripping, protector double‑wire welding, single‑end wire‑twisting & tin‑dipping, wire pulling
Detection Functions	Air pressure detection, wire presence detection, double‑wire detection, protector presence detection, welding quality detection
Compressed Air	0.5‑0.8MPa

Features

1. The protector is automatically sorted and fed by a vibrating plate.

2. Multi‑inspection functions: protector presence detection, double‑wire pre‑inspection before welding, and protector welding quality inspection. It identifies and rejects defects such as material shortage, circuit abnormalities and poor welding, effectively reducing defective output.

3. Independent resistance welding for dual pins of the protector. Welding parameters for both pins can be adjusted separately. The welding quality of each pin is controllable to ensure firm and consistent weld joints.

4. A servo translation mechanism is adopted for precise welding positioning. Rotating‑workpiece tin‑dipping ensures uniform coating and consistent tin‑dipping performance.
