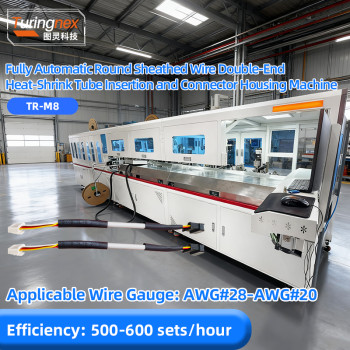

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

group name: Plastic Shell Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-M8

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Wed, 26 Aug 2026 11:02:49 GMT

contact supplier

Paramtents

Power 50/60HZ 220V Single-phase
Scope of processing AWG#28-AWG#20
Connector Housing Range 2P-10P Universal
Air Pressure 0.6-0.75Mpa (6-7KG/Cubic)

Packging & Delivery

180cm x120cm x150cm
Min Order1 piece

Briefing

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion. Main Functions:Terminal A: Wire Cutting, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Termina

Detailed

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Equipment Name	TR‑M8 Fully Automatic Round Sheathed Wire Double‑End Heat‑Shrink Tube Insertion and Connector Housing Machine
Power	Single-phase 220V, 50/60Hz.
Applicable Wire Gauge	AWG#28‑AWG#20
Size	4500×2200×1800mm
Cutting Length	150mm‑1000mm
Connector Housing Range	2P‑10P Universal
O.D. Range of Heat‑Shrink Tube	O.D. 4mm‑12mm
Outer Stripping Range	28mm‑65mm
Inner Stripping Range	0.5mm‑8mm
Cutting Precision	± (0.2%*L+1) mm
Air Pressure	0.6‑0.75Mpa (6‑7KG/Cubic)
Heat‑Shrink Tube Cutting Range	20mm‑50mm
Color Recognition	Computerized CCD Visual Automatic Recognition
Detection Devices	CCD Visual Inspection, Air Pressure Detection, Wire Presence/Absence Detection, Stripping Detection, Terminal Detection, Pressure Device Detection, Connector Housing and Terminal Position Detection, Missing Terminal/Tube/Housing Detection, etc.
Control Method	Industrial Computer Control, Touchscreen Operation. Mitsubishi PLC Mainboard Control System
Wire Payoff System	Computerized Fully Automatic Pre‑feeding Device, Suitable for Spooled Wire, Industry‑Standard 600mm Spool Device
Production Capacity	500‑600 finished sets per hour within 200mm

Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical. We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
