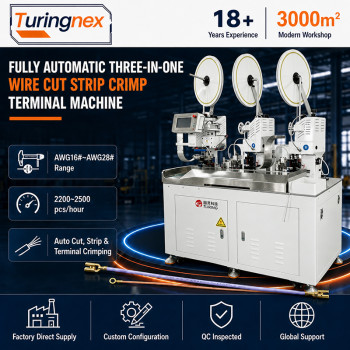

TR‑HY03 Fully Automatic Three-in-One Terminal Crimping Machine

group name: Full tape wrapping machine

Min Order: 1 piece

brand name: Turing

model: TR‑HY03

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 06 Aug 2026 22:12:32 GMT

contact supplier

Paramtents

Power AC 220V 2.5Kw
Applicable Wire Diameter AWG16–28# 1007 single-core electronic wires
Dimensions & Weight L1450 × W800 × H1650 mm / 520 KG
Production Capacity 2200–2500 PCS/H for wires within 300 mm length

Packging & Delivery

Min Order1 piece

Briefing

TR‑HY03 Fully Automatic Three-in-One Terminal Crimping Machine

Detailed

TR‑HY03 Fully Automatic Three-in-One Terminal Crimping Machine

Product Highlights

1.3-in-1 Integrated Processing

It integrates automatic wire cutting, wire stripping and double-wire combined crimping onto one terminal. Separate terminals can be crimped on the ends of wire 1 and wire 2, which effectively reduces intermediate process transfer.

2.High Production Efficiency

It can achieve an output of 2,200 to 2,500 pieces per hour for wires shorter than 300mm, greatly replacing inefficient manual single-station operation.

3.High Precision Wire Cutting Control

Equipped with an ARM 12-axis motion control card and servo translation drive, it delivers a cutting tolerance of ±0.4% for wires over 1000mm long.

4.Wide Processing Compatibility

The available processing length ranges from 60mm to 9900mm, with a customizable minimum length of 45mm. It fits AWG16-28# single electronic wires and supports OTP card-type molds.

5.Comprehensive Detection Functions

Standard built-in functions include terminal detection, air pressure detection, wire inspection and fault alarm. Pressure monitoring and visual inspection are available as optional upgrades.

6.Stable Branded Core Components

Key parts adopt Airtac pneumatic parts, Chint electrical components, 7-inch KINCO color touch screen and Jiayuan intelligent frequency conversion drive for stable and long-term operation.

Why Choose Us?

1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.

3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.

4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.

5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.

6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine

Equipment Name	TR‑HY03 Fully Automatic Three-in-One Terminal Crimping Machine
Power	AC 220V 2.5Kw
Size & Weight	L1450 × W800 × H1650 mm / 520 KG
Stripping Range	0–10 mm
Processing Length	60–9900 mm (minimum 45 mm customizable)
Applicable Wires	AWG16–28# 1007 single-core electronic wires
Compatible Dies	OTP card die (flag die / European die optional)
Air pressure	0.4–0.6MPa
Production Capacity	2200–2500 PCS/H for wires within 300 mm length
Crimping Force	Standard 2T with 30mm stroke (3T optional / 40mm stroke option
Cutting Tolerance	±0.4% for wire length ≥1000 mm; tolerance increases for longer or thicker wires
Machine Functions	Multi‑segment wrapping & full‑length wrapping available
Inspection Functions	Terminal detection, Air pressure detection, Wire detection Fault alarm, Pressure monitoring (Optional)
