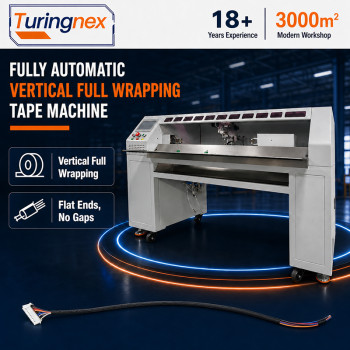

TR‑850D Automatic Vertical Full‑wrap Tape Wrapping Machine
- group name
- Full tape wrapping machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR‑850D
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 06 Aug 2026 20:38:27 GMT
Paramtents
Power AC220V/DC24V, 50/60Hz; 110V optional
Applicable Wire Diameter 3‑15mm
Dimensions & Weight 1830×600×1080mm，300kg
Medium‑speed Performance 15sec/m
Packging & Delivery
-
Min Order1 piece
Briefing
TR‑850D Automatic Vertical Full‑wrap Tape Wrapping Machine
Detailed
TR‑850D Automatic Vertical Full‑wrap Tape Wrapping Machine
Product Highlights
1.Flat & Gap‑Free Wrapping Ends
Vertical‑winding structure delivers neat ends, meets strict automotive harness standards.
2.Fully‑Automatic Operation
Auto tape feeding, wrapping & cutting. Pneumatic clamping reduces labor cost for mass production.
3.Flexible Wrapping Modes
Support partial / full‑length wrapping. Adjustable margin and speed up to 4500 RPM.
4.Wide Compatibility
Handles 3‑15mm wires. Compatible with multiple tape types and various tape core sizes.
5.User‑Friendly
Touch‑Screen Control
Easily set stroke, speed and cycles via HMI, simple for new operators.
6.Stable & Global‑Ready Design
Optional safety accessories. 220V / 110V optional. Robust build for long‑time continuous production.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR‑850D Automatic Vertical Full‑wrap Tape Wrapping Machine | |
Power | AC220V/DC24V, 50/60Hz; 110V optional | |
Size & Weight | 1830×600×1080mm，300kg | |
Operation Mode | Touch Screen | |
Effective Wrapping Stroke | Within 1000mm | |
Applicable Wire Diameter | 3‑15mm | |
Tape Core Inner
Diameter | Standard Φ38 (other sizes to be advised in advance) | |
Max. Tape Outer
Diameter | ≤110mm | |
Medium‑speed
Performance | 15sec/m | |
Speed Setting | 0‑30 adjustable levels | |
Optional Accessories | Paper‑take‑up device, safety light curtain | |
Machine Functions | Multi‑segment wrapping & full‑length wrapping available | |
Applicable Tapes | PVC, flannel‑fabric, cloth‑based, high‑temperature tapes;
especially suitable for paper‑backed tapes such as mica
tape, ceramic tape and acetate tape. | |
Machine Features | Designed for thin wires with pneumatic wire clamping
for easy operation. Dual‑end rotation prevents wire
twisting. Automatic tape applying, feeding and cutting
realize full automation to cut labor cost. Both wrapping
ends are flat and gap‑free. | |
