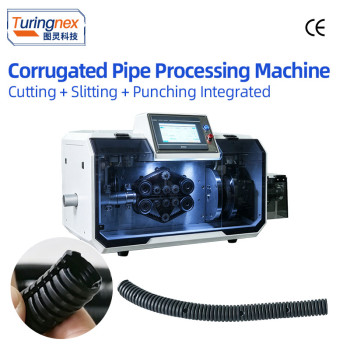

TR-535C Corrugated Pipe Punching & Cutting Machine

group name: Pipe/Tube Cutting Machine

Min Order: 1 piece

brand name: Turing

model: TR-535C

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Wed, 10 Jun 2026 20:50:27 GMT

contact supplier

Paramtents

Power AC220V
Application Automatic tube cutting machine
Feature Stable Performance
Air Pressure 0.70Mpa±0.5
Contact Coco 0086-18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-535C Corrugated Pipe Punching & Cutting Machine. One-step completion of fixed-length cutting, slitting, and punching for thin-walled pipes including corrugated pipes, PVC pipes, and heat-shrink tubes

Detailed

TR-535C Corrugated Pipe Punching & Cutting Machine

Equipment Name: TR-535C Corrugated Pipe Punching & Cutting Machine

Power Supply: AC220V 50/60Hz; 110V 50/60Hz optional

Size & Weight: 82 × 48 × 55 cm, 115kg

Processing Range: 4-35mm

Cutting Length: 1mm - 999999.99mm

Cutting Tolerance: Within 0.005 × L (L = cutting length)

Productivity: 3000 PCS/hour (for 100mm length, 10mm diameter)

Drive System: 10-wheel drive; Servo motor optional

Feeding Method: Belt feeding, no indentation or scratches on pipes

Height Adjustment: Digital adjustment of pressure roller height

Punch Spacing Adjustment: Digital adjustment

Punch Hole Diameter Adjustment: Replaceable punches

Functions: One-step completion of fixed-length cutting, slitting, and punching for thin-walled pipes including corrugated pipes, PVC pipes, and heat-shrink tubes

Features

1.Optional configurations: MES system, IoT system, fixed-point inkjet marking, pipe slitting function, and external auxiliary device alarm.

2.User-friendly system with intuitive operation via 7-inch color touch screen.

3.Modular interfaces for easy connection of accessories and peripheral equipment.

4.Modular design supports future upgrades.

5.A full range of optional accessories and customizable systems.

6.Non-standard customization is available for processing special pipes.
