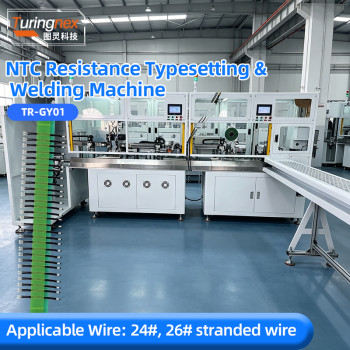

TR-GY01 NTC Resistance Typesetting & Welding Machine
- group name
- Fully Automatic Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-GY01
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Wed, 29 Apr 2026 02:16:08 GMT
Paramtents
Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping,Tin Dipping, Typesetting
Compressed Air 0.5-0.7 MPa
Contact Coco : +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-GY01 NTC Resistance Typesetting & Welding Machine
Detailed
TR-GY01 NTC Resistance Typesetting & Welding Machine
Equipment Name：TR-GY01 NTC Resistance Typesetting & Welding Machine
Dimensions & Weight：395x302x191cm, 1000kg
Working Environment：0-40℃
Applicable Wire：24#, 26# stranded wire
Cutting Length：100~2000mm
Operating Voltage：AC220V / AC380V
Operating Air Pressure：0.5-0.7 MPa
Stripping Length：2.5~4mm (±0.5mm); front-end wire splitting 1-2mm, twisting function (optional)
Typesetting Size：The wire tip extension beyond the edge of the arrangement plate is adjustable from 15 to 30mm (via parameter settings).
Wire Feeding Mode：3 feeding rollers, simultaneous cutting & stripping, 3 wires per cycle (customizable)
Production Efficiency：1500-1800PCS/H (at 500mm wire length)
Equipment Overview
This equipment is a dedicated mechanical device for the production and processing of wire harnesses, widely used in modern industrial production, especially in the electronics industry. Its main functions include wire harness cutting, stripping, terminal crimping, CCD inspection, flux/tin dipping, typesetting, tape application, and black head welding. It greatly improves production efficiency and quality while reducing labor costs.
Equipment Features
1.Dual Welding Process: Combines resistance welding and tin soldering, ensuring strong welds with anti-oxidation performance.
2.Customized Design: Tailored to meet specific production process requirements.
3.High Efficiency: Advanced automation technology completes wire harness processing tasks quickly, significantly boosting productivity.
4.High Precision: Equipped with high-precision measurement and positioning systems, ensuring extreme accuracy in cutting length, stripping depth, and crimping position.
5.Flexibility: Multiple functional modes can be adjusted to adapt to various specifications and types of wire harness processing tasks.
6.Reliability: Rigorous quality control and durability testing ensure stable performance during long-term operation.
7.Modular Structure: Facilitates easy maintenance, upgrades, and expansion.
8.Safety: Equipped with multiple safety protection mechanisms, complying with industry safety standards.
Process Flow
Pre-stripping → Flux & Tin Dipping → Post-stripping → Flux & Tin Dipping → Typesetting → Tape Application → Black Head Resistance Welding → Black Head Soldering → Finished Product Output & Arrangement
