TR-2040 Ultrasonic Metal Welding Machine
- group name
- Welding Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-2040
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Fri, 17 Apr 2026 12:34:39 GMT
Paramtents
Power AC220V 50/60Hz
Application Metal Welding Machine
Ultrasonic Power 4kW
Ultrasonic Frequency 20kHz
Packging & Delivery
-
Min Order1 piece
Briefing

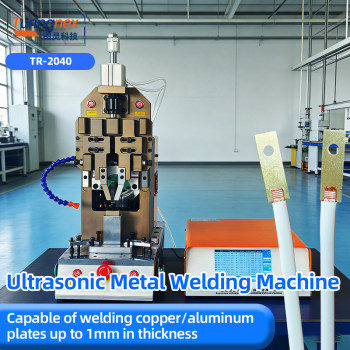

TR-2040 Ultrasonic Metal Welding Machine
Detailed
TR-2040 Ultrasonic Metal Welding Machine
Equipment Name：TR-2040 Ultrasonic Metal Welding Machine
Power Supply Single-phase：AC220V 50/60Hz
Max Output Power：4000W
Operating Frequency：20kHz
Control Method：Touch Screen
Welding Time：0.5s~9.99s
Language：Chinese/English
Working Air Pressure：0.2~0.8MPa
Ambient Humidity：20%~70% (No Condensation)
Host Dimensions：750x400x730mm
Control Box Dimensions：400x280x230mm
Machine Weight：Approx. 70kg
Welding Range：Copper/Aluminum Plate Welding Thickness: 1mm; Wire to Copper/Aluminum Welding: Approx. 5~20mm²
Features
1.Digital circuit control, supporting time mode and amplitude adjustment mode; holding time and amplitude are fully adjustable.
2.Equipped with automatic frequency tracking and intelligent protection functions, enabling workpiece vibration release after welding and welding record query.
3.Data saving via USB flash drive, with bilingual (Chinese/English) touch screen.
4.Fully automatic frequency tracking technology, eliminating the need for manual frequency adjustment when replacing welding heads or during welding.
5.Real-time welding current display.
6.Manual frequency offset adjustment and overcurrent protection.
7.Precision linear guide rails ensure smooth operation and optimal welding accuracy.
8.Stable amplitude output even during voltage fluctuations.
Application Fields
This ultrasonic metal welding machine is suitable for various metal welding scenarios, including the automotive industry, lithium-ion batteries, power batteries, automotive wiring harnesses, and other automotive components.
Weldable Materials: Negative electrode tabs, nickel tabs to copper foils, aluminum foils to aluminum strips, aluminum cover plates to aluminum-nickel composite strips, aluminum to nickel transition joints, pouch battery welding, multi-layer copper foils to copper-nickel plated strips, copper foils to nickel-plated strips, etc., with firm and reliable welds.
Welding Methods: Customizable welding heads with 2 or 4 welding surfaces, 1 welding point per surface.
