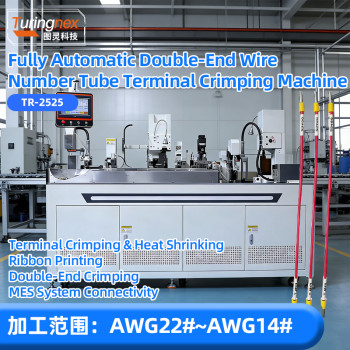

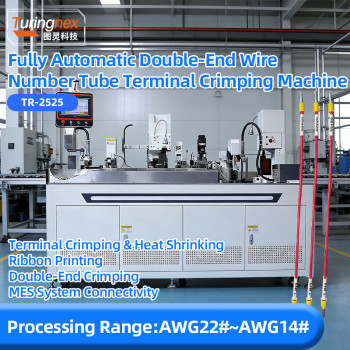

TR-2525 Fully Automatic Double-End Wire Number Tube Terminal Crimping Machine
- group name
- Inserting Tube Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-2525
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sun, 09 Aug 2026 13:19:39 GMT
Paramtents
Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping
Cutting Length 66~99999mm
Contact Coco : +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

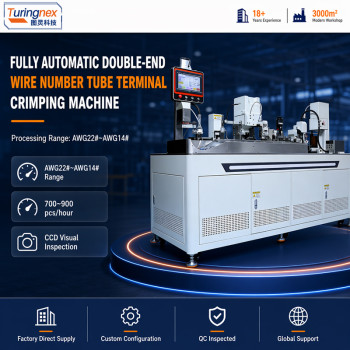

TR-2525 Fully Automatic Double-End Wire Number Tube Terminal Crimping Machine
Detailed

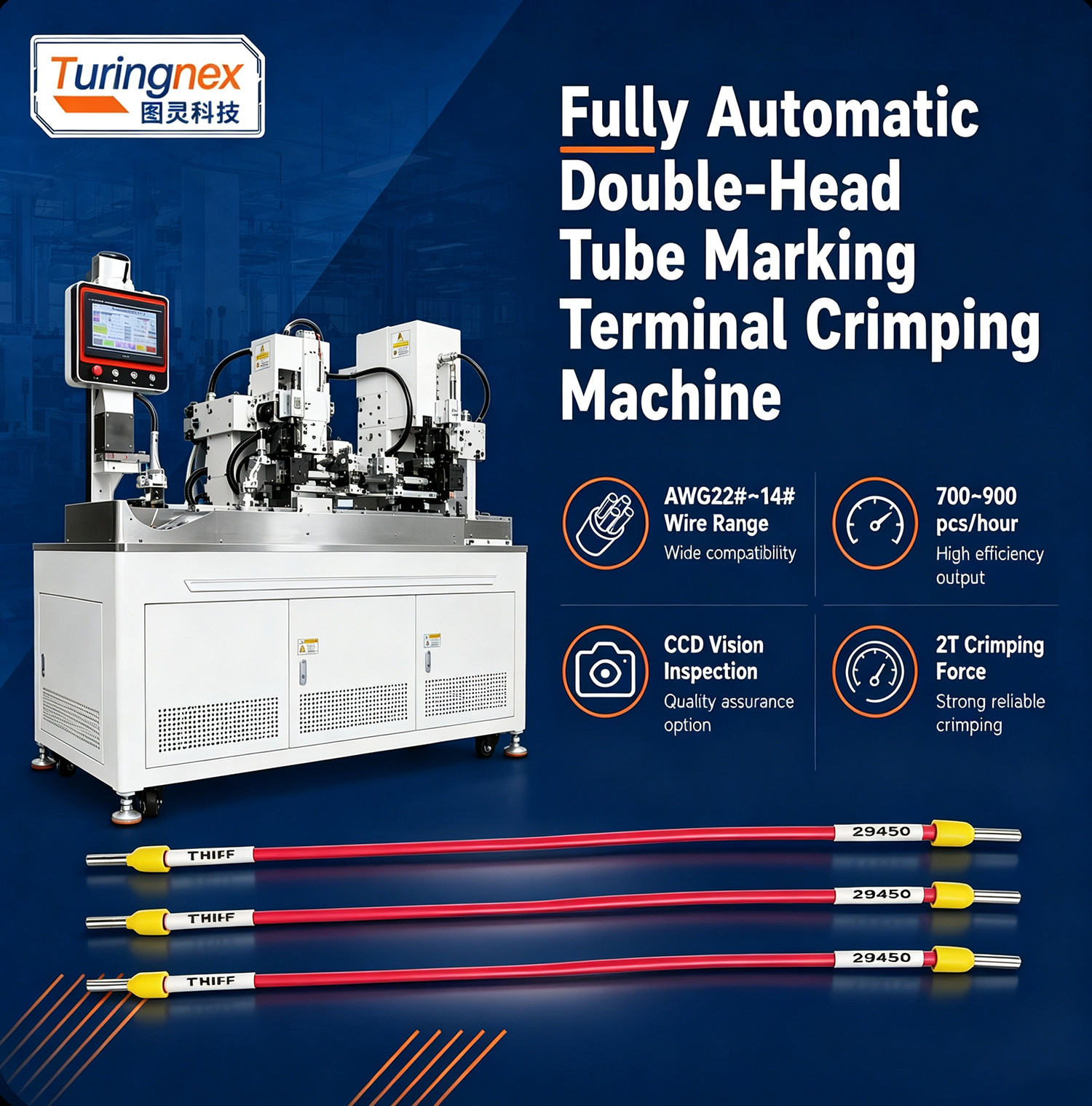

TR-2525 Fully Automatic Double-End Wire Number Tube Terminal Crimping Machine
Product Highlights
1.High Production Efficiency
700–900 pieces per hour for wires within 80–150mm length, greatly replacing manual work and boosting productivity.
2.Stable & Superior Processing Precision
Cutting tolerance ≤0.2mm + 0.2% of cutting length; adjustable stripping length, 2.0T crimping force, ensuring consistent harness quality.
3.All-in-one Integrated Processing

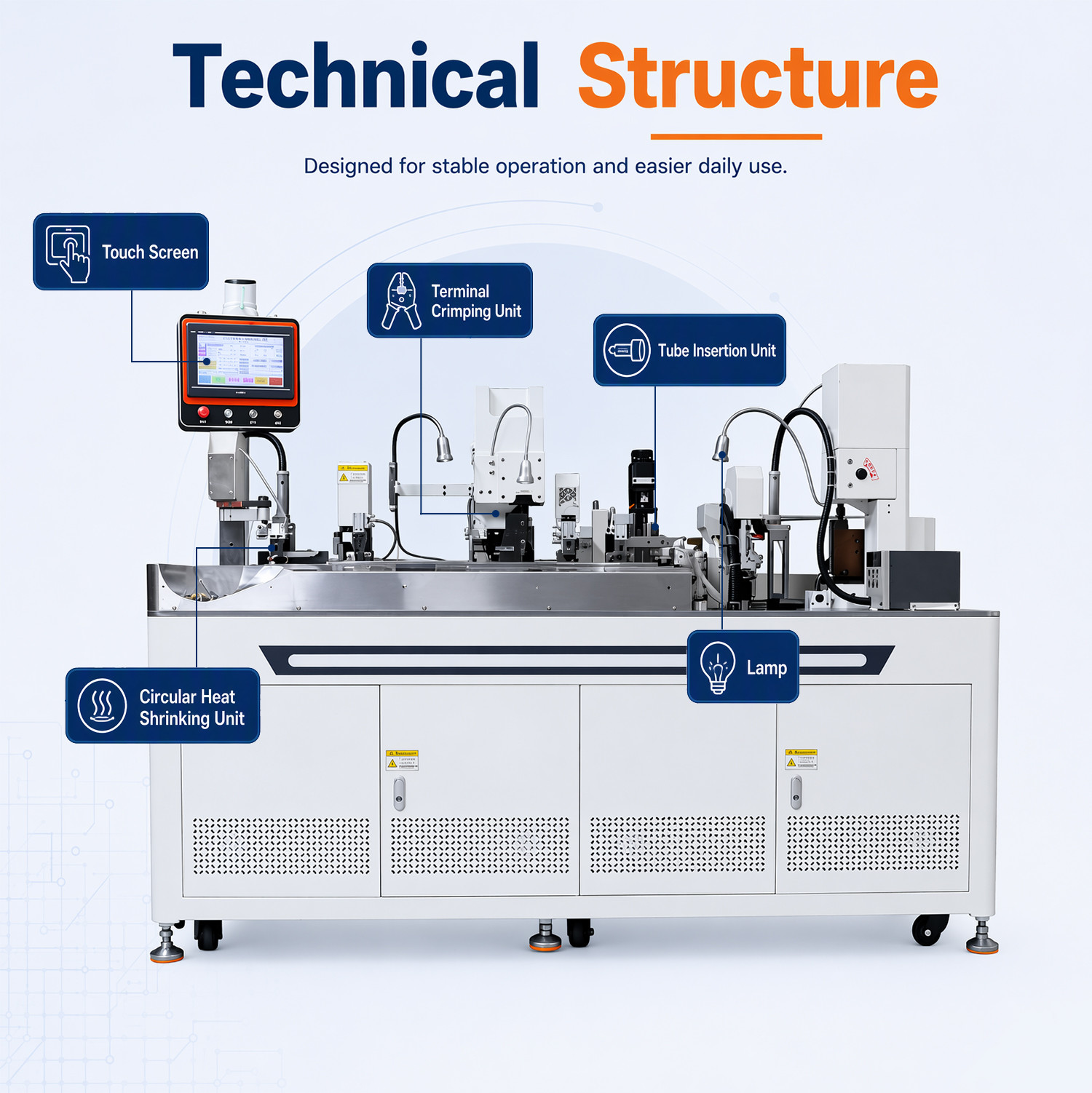

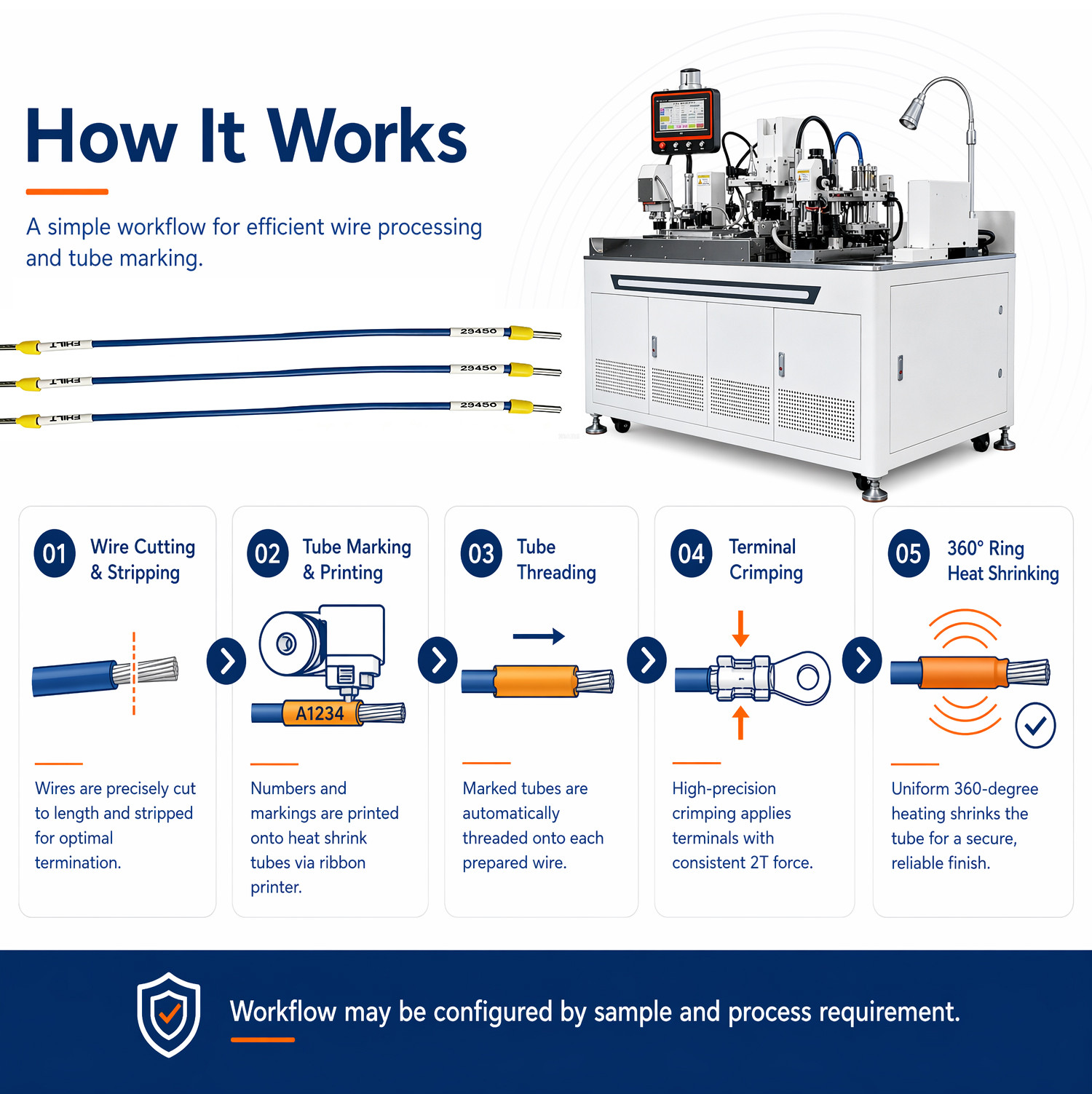

Completes full procedures automatically: wire cutting, stripping, double-end terminal crimping, marking tube threading and 360° circular heat shrinking.
4.Multi-inspection for High Yield Rate

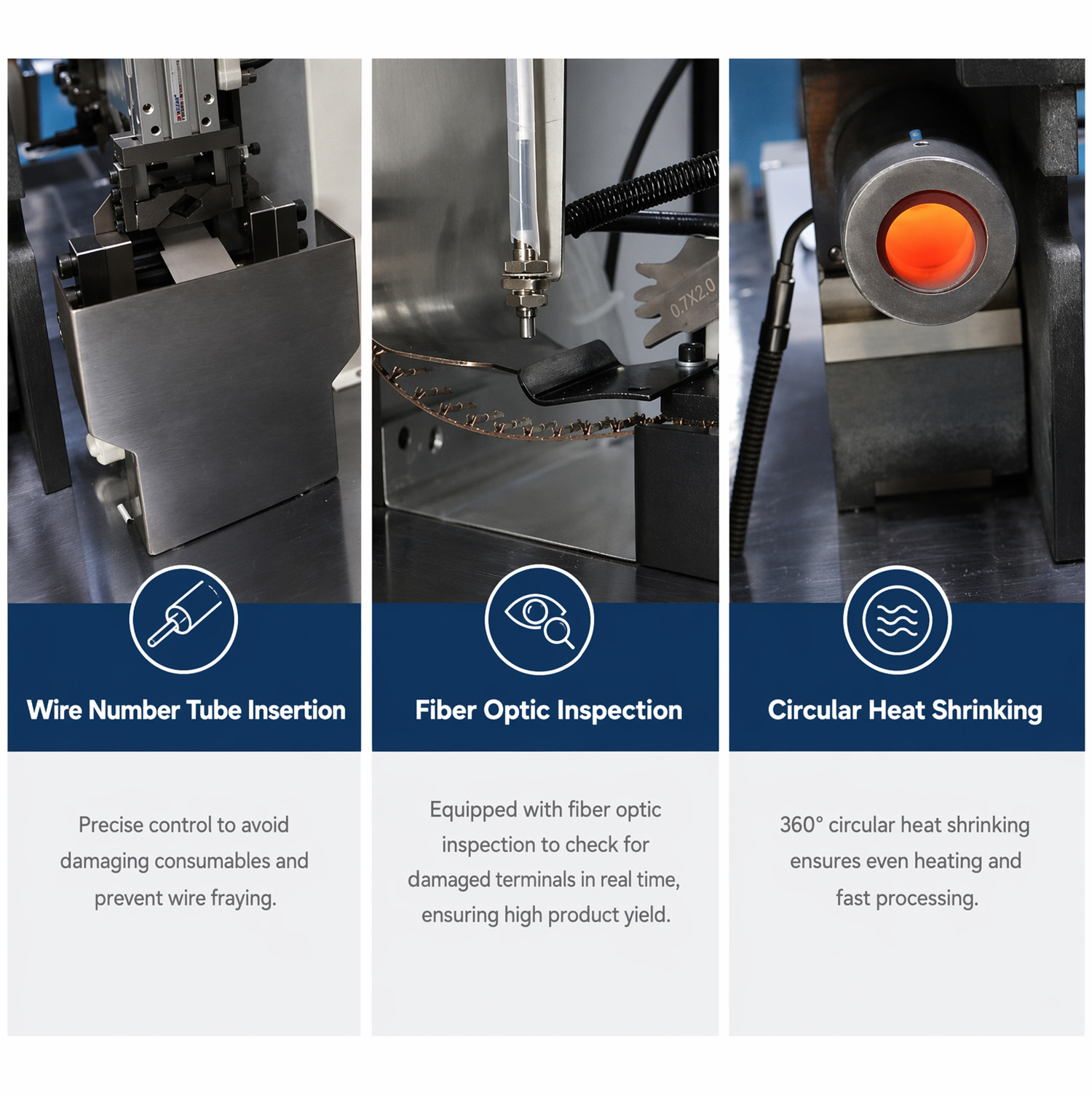

Equipped with fiber optic inspection and optional CCD visual detection to automatically reject missing terminals and defective crimping products.
5.Wide Wire Compatibility
Covers wire gauge AWG22# to AWG14#, cutting length adjustable from 66mm to 99999mm, ideal for automotive, home appliance wiring harnesses.
6.Gentle Wire Protection Technology

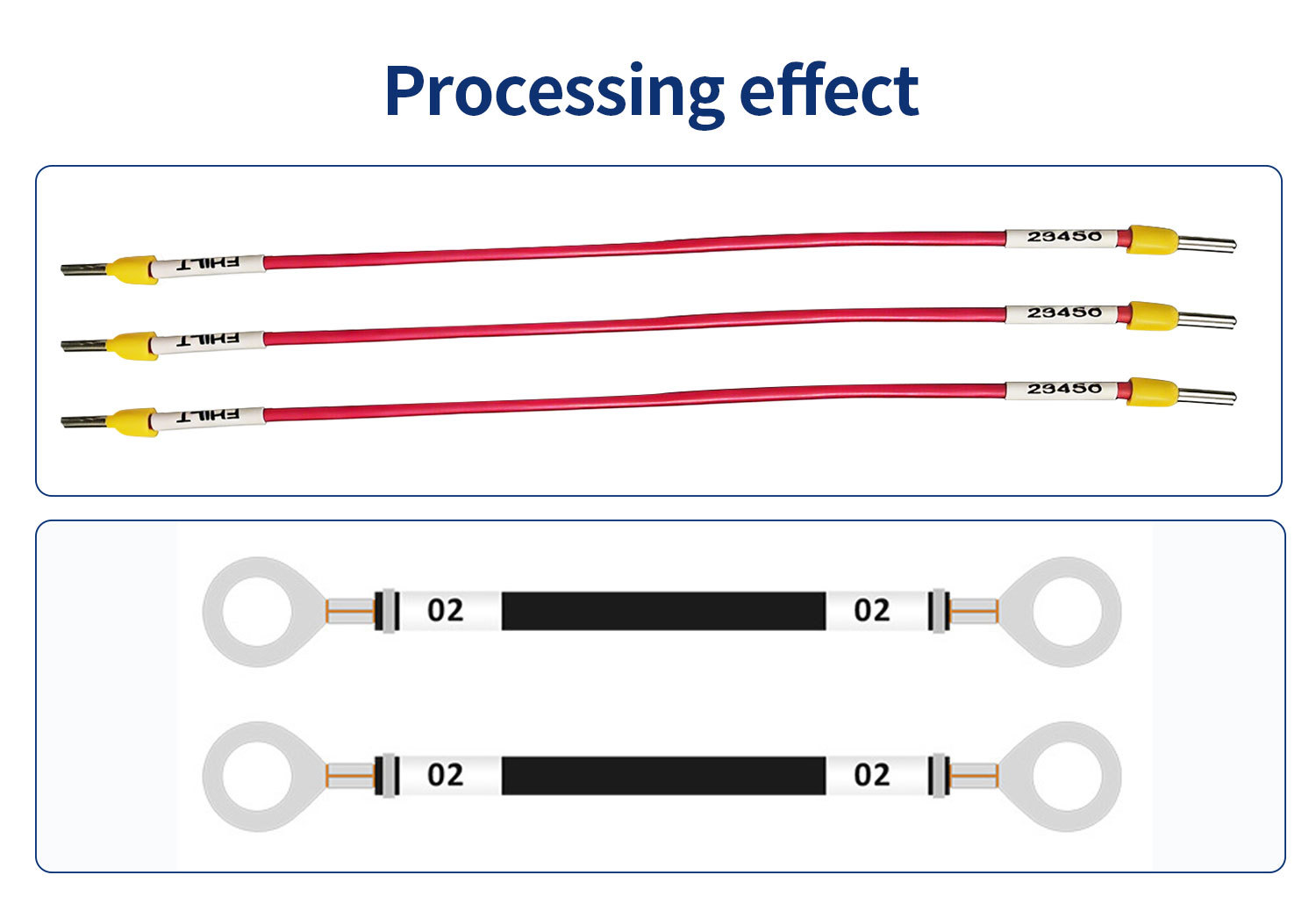

Precise marking tube threading avoids wire insulation damage and wire fraying; 360° circular heating ensures even heat shrinkage with neat appearance.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.

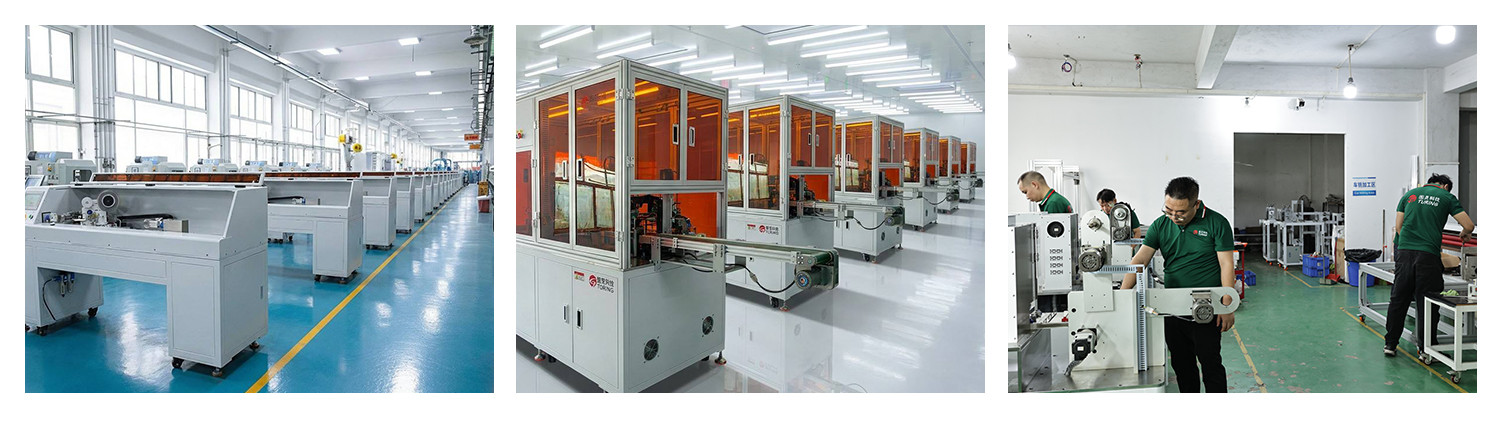

2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR-2525 Fully Automatic Double-End Wire Number Tube
Terminal Crimping Machine | |
Processing Range | AWG22#~AWG14# | |
Size & Weight | 800x1800x1800mm，800kg | |
Cutting Length | 66~99999mm | |
Stripping Length | Front: 0.5~8mm; Rear: 0.1~10mm | |
Cutting Accuracy | 2.0T | |
Production Efficiency | 700~900 pcs/hour (for wire length 80~150mm) | |
Optional Mold | 30mm or 40mm | |
Air Pressure | 0.4~0.6MPa (clean, dry air) | |
Optional | CCD Visual Inspection | |
Cutting Accuracy | Tolerance: ≤ 0.2mm + 0.2% of cutting length | |

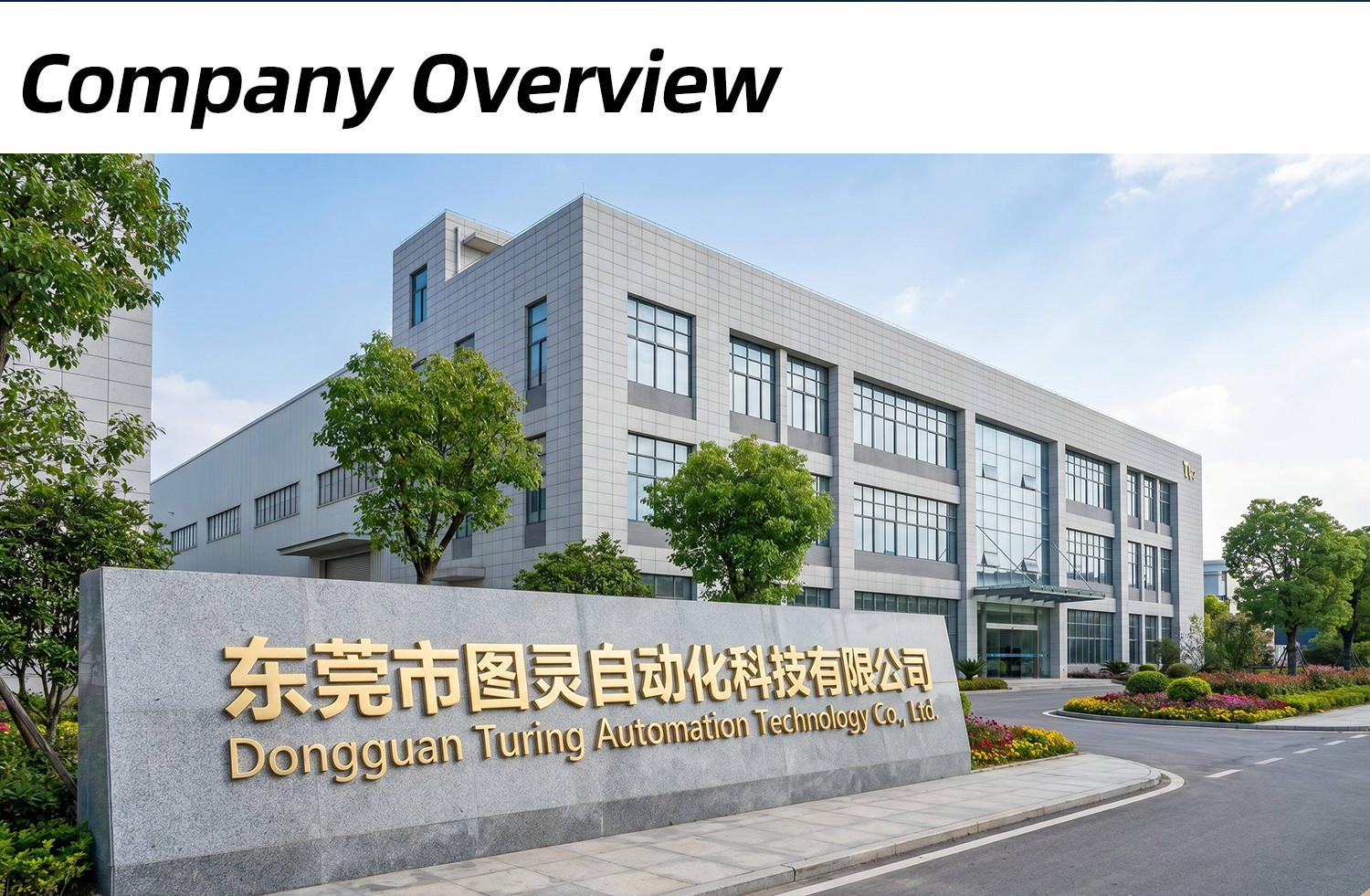

Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical.
