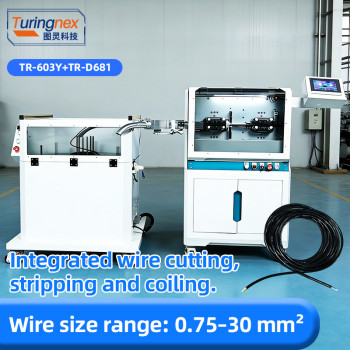

TR-603Y Large Square Computerized Wire Stripping Machine+ Wire Winding Machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-603Y

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Mon, 02 Mar 2026 12:05:53 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-603Y Large Square Computerized Wire Stripping Machine.Wire cutting, stripping and coiling completed in one go
CoCo +86 18666170785

Detailed

TR-603Y Large Square Computerized Wire Stripping Machine

Equipment name: TR-603Y Large Square Computerized Wire Stripping Machine

power supply: AC220V 50/60HZ (1100V 50/60HZ optional)

Display Mode: 7-inch human-machine interface

function: Single-core line, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping

Wire Type: Single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.

Scope of processing: 0.75-16mm²

Max. permissible passing diameter: φ18

Cutting length: 1-999999.99mm

Blade Material: Imported high-speed steel

Cutting tolerances: Within 0.002*L (L=cutting length)

Strip length: Front end full release: 1-200mm, front end half release 1-1500mm; Rear end full release: 1-100mm, Rear end half release 1-300mm

Stripping speed: 3500pcs/H

Size / Weight: 707x590x1140mm, 140kg

Wire feeding method: Belt feeding, cable without embossing marks and scratches. (with stripping and pressurizing function)

Driving method: 16-wheel drive (feed stepper motors, tool holder servo motors); servo feeding optional

Lifting and lowering operation: Digitally adjustable pressure wheel height

note: Ultimate cutting capacity 50 sq. ft.

Features

Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;

User-friendly system, can be operated intuitively through the 7-inch color touch screen;

Modularized interface, convenient to link accessories and peripheral equipment;

Modular design, upgradeable in the future;

Various attached options, customizable system. Special cable processing, non-standard customization.

Equipment Name: TR-D681 Winding Machine

Display Mode: Digital tube

Function: Wire winding and coiling

Wire Type: Electric wires, cables

Dimensions: 570x570x1000mm

Control Mode: Master machine follow control (can be used independently)

Spool Diameter: 380mm

Coiling Diameter: 200-360mm

Coiling Speed: 1.5M/s

Drive Mode: Servo motor

Winding Completion Detection: None

Safety Device: Pneumatic safety door

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
