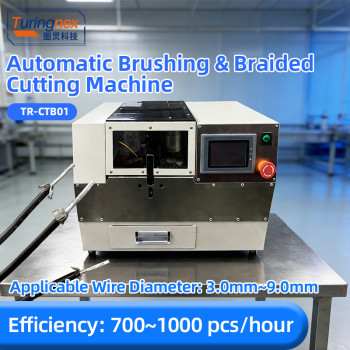

TR-CTB01 Automatic Brushing & Braided Cutting Machine

group name: Semi-automatic Pneumatic Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-CTB01

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sun, 08 Feb 2026 00:38:14 GMT

contact supplier

Paramtents

Stripping range OD3~9mm
size 580x500x400mm
Air Pressure 0.4~0.6MPa
Control Method Pneumatic Control

Packging & Delivery

Min Order1 piece

Briefing

TR-CTB01 Automatic Brushing & Braided Cutting Machine

Detailed

TR-CTB01 Automatic Brushing & Braided Cutting Machine

Voltage & Power：AC220V/60Hz, 600W

Air Pressure：0.4~0.6MPa

Applicable Wire Diameter：Outer Diameter 3.0~9.0mm

Efficiency：700~1000 pcs/hour

Applicable Stripping Length：8~35mm

Reserved Braiding Length Range：3~10mm

Dimension：580x500x400mm

Consumables：Cutting Blades, Brushes

Equipment Features

1.An automated device designed for dispersing and cutting the braided layer of shielded cables and shielding meshes to a specified length. This machine adopts a pneumatic-electrical working principle: first dispersing the shielding layer with a brush, then turning it over, and finally cutting it with a shear blade. The minimum retention after turning-over is 3mm; common retention options are 3mm, 5mm, 6mm, and 8mm.

2.The braid dispersing brush is a custom-made metal brush with a service life of over 6 months, supporting forward/reverse brushing and speed adjustment.

3.The machine uses blades made of imported steel to ensure excellent cutting performance.

4.Controlled by a foot pedal switch for simple and safe operation.

5.Equipped with a dedicated waste collection box to collect trimmed scraps, preventing splashing and keeping the workspace clean.

6.Suitable for mobile phone fast charging data cables, shielded network cables, and signal transmission shielded cables.
