TR-303XH-1 Intelligent Tape Winding Machine
- group name
- Full tape wrapping machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-303XH-1
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Fri, 26 Dec 2025 23:09:49 GMT
Paramtents
Power AC220V/50HZ,
operating mode Touch Screen
power supply AC220V/DC24V
Warranty 1year
Wire diameter Φ15mm-40mm
Packging & Delivery
- 45cm x35cm x50cm
-
Min Order1 piece
Briefing

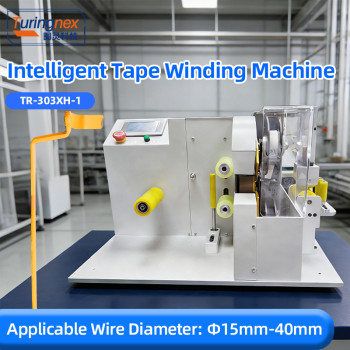

TR-303XH-1 Intelligent Tape Winding Machine
Detailed
TR-303XH-1 Intelligent Tape Winding Machine
Power Supply Voltage：AC200V/DC24V, 50/60Hz (110V optional)
Dimension & Weight：560x540x390mm, 68kg
Wooden Case Dimension：740x640x640mm
Operation Mode：Touch screen
Winding Mode：Spiral winding
Applicable Wire Diameter：Φ15mm-40mm
Tape Width：9-30mm
Winding Length：Unlimited length
Tape Outer Diameter：Max. 140mm
Applicable Flat Metal Size：Thickness: 1-10mm; Width: 10-30mm
Main Machine Speed：4500 rpm (adjustable)
Tape Inner Hole Size：Machine-matched Φ76 (for other sizes Φ32, Φ38... please inform in advance)
Applicable Tapes：PVC, flannelette, cloth-based tape, high-temperature tape; more suitable for mica tape, ceramic tape, acetate cloth and other tapes with base paper
Machine Features
This machine is suitable for winding new energy copper bars, aluminum bars, busbars or other flat metals. It is equipped with a base paper separation device: while winding the tape, it can separate the base paper synchronously and straighten copper bars to avoid deformation.
For wire harnesses needing the base paper separation device, it works better when the wire harness diameter is 15mm-40mm.
For tapes without base paper, an intermediate platform for the tape holder can be added, expanding the applicable wire diameter to 3-40mm.
The straightening device and paper collector are optional separately.
Machine Functions
Supports full winding, interval winding, spot winding, and adjustable overlapping area. It is mainly used for copper bars, busbars, etc. with a wire diameter of over 10mm.
Reference speed: For a Φ7mm corrugated pipe, it can wind 6 meters per minute with 1/4-density tape overlapping.
Reference speed: For a Φ5mm electronic wire, it can wind 5 meters per minute with 1/3-density tape overlapping.
