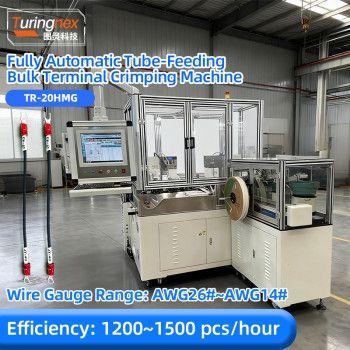

TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine
- group name
- Inserting Tube Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-20HMG
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Tue, 16 Dec 2025 09:43:42 GMT
Paramtents
Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping
Stripping Length 1.5~15mm
Working Air Pressure 0.5~0.65MPa (clean dry air)
Contact Coco : +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine.This machine enables continuous automatic processing of wire cutting, stripping, twisting, double-end tube feeding, and single-end tube feeding.
Applicable to AWG26#~AWG14# wires, it adopts a modular design. The wire feeding device, crimping device, tool rest device, tube feeding equipment, heating tube device, and wire take-up device can be quickly disassembled individually for convenient and fast maintenance.
Applicable to AWG26#~AWG14# wires, it adopts a modular design. The wire feeding device, crimping device, tool rest device, tube feeding equipment, heating tube device, and wire take-up device can be quickly disassembled individually for convenient and fast maintenance.
Detailed
TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine
Power Rating：AC220V 800W
Dimensions & Weight：1300x1050x1550mm, 580kg
Display：Chinese-English LCD Display
Air Pressure：0.5~0.65MPa (clean dry air)
Press Capacity：2000kg
Production Capacity：1200~1500 pcs/hour
Wire Feeding：Method Drum Feeding
Wire Gauge Range：AWG26#~AWG14#
Pressure Detection：Optional
CCD Visual Inspection：Optional
Cutting Accuracy：Tolerance 1mm + Cutting Accuracy * 0.2%
Stripping Length：1.5~15mm
Operation Mode：Single-step, Single-cycle, Automatic
Operating Condition：0~50°C
Functions：Wire Cutting, Stripping, Twisting, Tube Feeding, Terminal Crimping, Wire Marker Printing
Terminals：Ferrule Terminals, Y-type/O-type Terminals, Bulk Terminals
Cutting Length：90mm~999999mm (minimum remaining 70mm), Tube Length: 15mm
Detection Equipment：Wire Presence Detection, Fiber Optic Detection, Low Air Pressure Detection
Machine Features
1.This machine enables continuous automatic processing of wire cutting, stripping, twisting, double-end tube feeding, and single-end tube feeding.
2.Applicable to AWG26#~AWG14# wires, it adopts a modular design. The wire feeding device, crimping device, tool rest device, tube feeding equipment, heating tube device, and wire take-up device can be quickly disassembled individually for convenient and fast maintenance.
3.You can adjust stripping length, cutting length, tube feeding speed, time, and terminal crimping speed via the touch screen.
4.Equipped with fiber optic induction detection to check the presence of wires and terminal crimping, which improves product yield.
