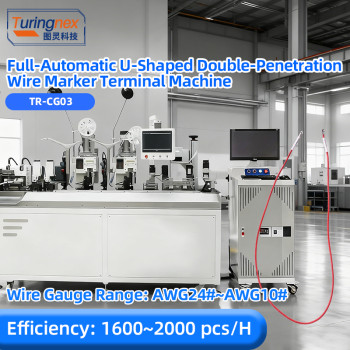

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

group name: Inserting Tube Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-CG03

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 06 Dec 2025 21:36:51 GMT

contact supplier

Paramtents

Power AC220V 50/60Hz 20A
Application wire cutting, stripping, terminal crimping
Stripping Length 1mm~15mm
Working Air Pressure: ≥0.5MPa
Contact Coco : +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

Detailed

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

Power Supply Voltage: AC220V 50/60Hz 20A

Dimensions: 2000x750x1850mm

Cut Length: 300mm~9999mm

Stripping Length: 1mm~15mm

Crimping Force: 2T~4T

Crimping Stroke: 30mm (40mm customizable)

Applicable Mold: Universal OTP Mold

Compressed Air: ≥0.5MPa

Detection Devices: Pneumatic pressure detection, wire presence detection, crimp terminal presence detection, pressure monitoring (optional), CCD visual inspection (optional)

Functions: Wire cutting, double-end stripping, double-end crimping, double-end tube threading, double-end heat shrinking

Efficiency: 1600~2000 pieces/hour

Wire Gauge Range: AWG24#~AWG10#

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
