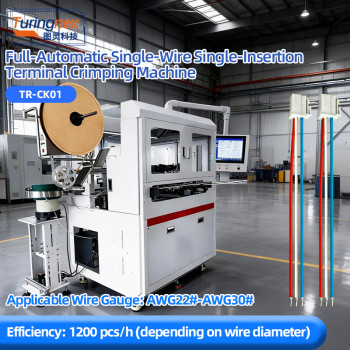

TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine

group name: Plastic Shell Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-CK01

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 06 Dec 2025 21:36:51 GMT

contact supplier

Paramtents

Power 220V 50/60Hz
Scope of processing AWG22#~AWG30# (Customizable)
Housing Pitch 1.0-3.96
Air Pressure 0.4-0.5MPa (Air Consumption Approx. 130~180nL/min)

Packging & Delivery

180cm x120cm x150cm
Min Order1 piece

Briefing

TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine. Machine Functions: Multiple Detection Functions for Front and Rear Wire Cutting, Stripping, Crimping, Housing Insertion, etc.

Detailed

TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine

Power Supply: 220V 50/60Hz

Dimension: 1400x1100x1650mm

Applicable Wire Gauge: AWG22#~AWG30# (Customizable)

Housing Pitch: 1.0-3.96

Cutting Length: 45-1000mm (Single/Double-End Housing Insertion, Crimping)

Cutting Precision: ±1mm (+Set Cutting Length*0.02)

Stripping Length: 0.1-15mm

Crimping Capacity: 2T

Control Method: PLC Motion Controller

Compressed Air: 0.4-0.5MPa (Air Consumption Approx. 130~180nL/min)

Pay-Off Machine: 18-Axis Pay-Off Rack (Electric Pay-Off Rack) Determined by Customer's Wire

Take-Up Machine: Automatic Conveyor Belt

Operating Temperature: -10℃~45℃ (Recommended 15℃~30℃)

Machine Functions: Multiple Detection Functions for Front and Rear Wire Cutting, Stripping, Crimping, Housing Insertion, etc.

Detection Capability: Detect Presence of Wire, Over-Tight Wire, Wire Knotting, Abnormal Crimping and Stripping, Air Pressure Drop, Presence of Terminal, Whether Terminal is Crimped, Presence of Housing, Whether Housing is Inserted in Place, Terminal Pressure Detection

Processing Speed: 300 pcs/h, if 6P pitch 2.5 with 4 wires simultaneously, it can reach 1200 pcs/h, multiple wires can be processed simultaneously according to wire diameter and housing width
