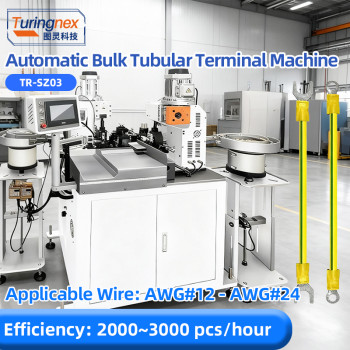

TR-SZ03 Automatic Bulk Tubular Terminal Machine
- group name
- Fully Automatic Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-SZ03
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 06 Dec 2025 13:47:50 GMT
Paramtents
Power 3-phase 220V±10% (50/60Hz)
Dimensions & Weight: 2000x1100x1600mm, 580kg
Applicable Wire Gauge AWG#12 ~ AWG#24
Crimping Capacity 2T
Contact Coco : +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-SZ03 Automatic Bulk Tubular Terminal Machine.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;
Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
Detailed
TR-SZ03 Automatic Bulk Tubular Terminal Machine
Power Supply 3-phase 220V±10% (50/60Hz)
Dimension & Weight 2000x1100x1600mm, 580kg
Applicable Wire Gauge AWG#12 ~ AWG#24
Cutting Length 50~9999mm
Efficiency 2000~3000 pcs/hour
Stripping Length 0~15mm
Crimping Capacity 2T
Air Requirement 0.5MPa 150(ANR)/min
Cutting Precision within ±0.1(0.1+0.005*L)mm
Air Pressure 0.6-0.75Mpa(6-7KG/cm³)
Crimping Drive Inverter drive, AC motor
Display Language Chinese
Applicable Wire Types AV、AVS、AVSS、CAVUS、KVKIV、UL
Feature Description
1.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;
2.Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;
3.The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)
