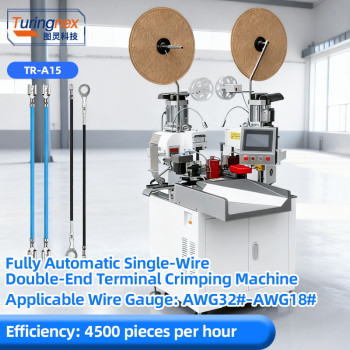

TR-A15 Fully Automatic Single-Wire Double-End Terminal Machine

group name: Fully Automatic Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-A15

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Fri, 07 Nov 2025 12:16:18 GMT

contact supplier

Paramtents

Power AC220V, Single Phase 4A, approximately 1kW
Dimensions & Weight: 1060x600x1380mm, 390kg
Applicable Wire Gauge AWG2#~AWG18#
Crimping Capacity 1.5T
Contact Coco : +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-A15 Fully Automatic Single-Wire Double-End Terminal Machine

Detailed

TR-A15 Fully Automatic Single-Wire Double-End Terminal Machine

Power Supply: AC220V, Single Phase 4A, approximately 1kW

Dimensions & Weight: 1060x600x1380mm, 390kg

Applicable Wire Gauge: AWG2#~AWG18#

Processing Length: 10mm~99999mm

Stripping Length: 0.1mm~25mm

Crimping Capacity: 1.5T

Air Pressure: 0.4~0.8MPa (Clean and Dry Air Source)

Working Air Pressure: 0.6MPa (Air Source Requires Drying and Filtration)

Detection Device: Wire presence/absence, wire overload, wire joint, poor stripping, poor die stamping, terminal presence/absence, terminal overload, low air pressure

Brand Components: Taiwan HIWIN Linear Guides, Taiwan AIRTAC Cylinder Solenoid Valves, Leadshine Closed-Loop + Servo Motor, Japanese Bearings

Feature Description

1.Stripping Length Adjustment Method: Adjusted by computer touch control, enabling quick change of stripping length with easy operation;

2.Servo motors are adopted to control fixed-length wire feeding, stripping, terminal crimping and other actions, and the time of each related action will be automatically coordinated and adjusted;

3.The terminal crimping position is adjusted by panel touch control, which is fast and convenient;

4.Tension adjustment uses a quick fine-tuning knob (with a precision of 0.02mm per grid), allowing precise adjustment without tools;

5.The operation modes of this machine can be divided into: decomposed action, single-stroke action and automatic mode, etc., switched by touch panel, making the operation simple and convenient.
