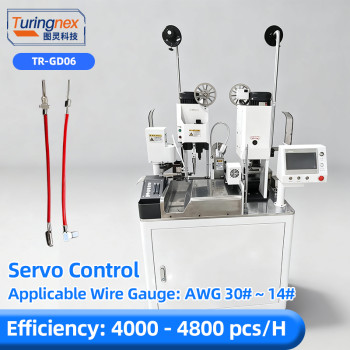

TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine

group name: Fully Automatic Terminal Crimping Machine

Min Order: 1 piece

brand name: Turing

model: TR-GD06

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 16 Oct 2025 19:22:39 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Application terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact Coco:+8618666170785

Packging & Delivery

Min Order1 piece

Briefing

TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine，Functions: Wire cutting, stripping at both ends, half - stripping at single end, crimping at single end of single wire, crimping at double ends of single wire

Detailed

TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine

Dimension and Weight: 1380x750x1580mm, 360kg;

Voltage and Power: AC220V 50Hz, 1.8Kw

Wire Cutting Length: 26mm - 9999mm

Wire Cutting Tolerance: ≥1m, within ±0.02%

Wire Stripping Length: 0.5mm - 35mm (Half - stripping is required when exceeding 12mm)

Wire Cutting Speed: 5500 pieces/h (within 100mm)

Applicable Wire: AWG30# - 14#

Processing Efficiency: 4000 - 4800 pieces/h (within 30 - 200mm)

Applicable Mould: OTP horizontal mould, straight mould (European - style mould can be customized)

Crimping Pressure: Standard 2.0T, other pressures can be customized

Screw Rod: 4 sets of TBI screw rods

Motor: 5 sets of Mitsubishi servo motors from Japan + 2 sets of stepper motors

Slide Rail: 7 sets of Hiwin slide rails

Bearing: SKF from SwedenCrimping

Pressure: Standard 2.0T, other pressures can be customized

Machine Functions: Wire cutting, stripping at both ends, half - stripping at single end, crimping at single end of single wire, crimping at double ends of single wire
