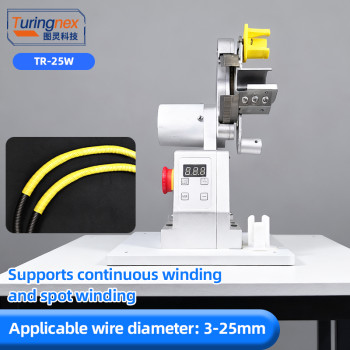

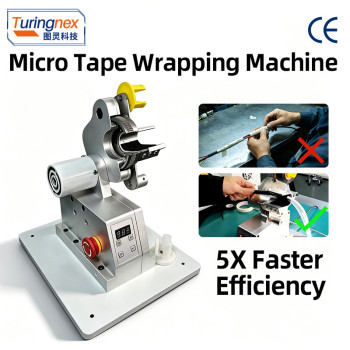

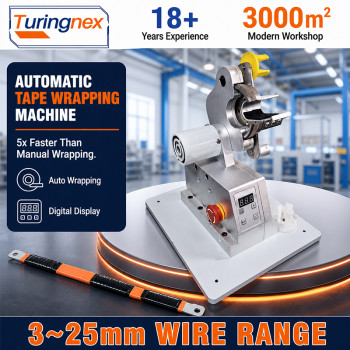

TR-25W Small Tape Winding Machine
- group name
- Full tape wrapping machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-25W
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 27 Aug 2026 14:46:38 GMT
Paramtents
Power AC220V/50HZ,
operating mode Touch Screen
power supply AC220V/DC24V
Warranty 1year
Wire diameter Ф3mm-25mm
Packging & Delivery
- 45cm x35cm x50cm
-
Min Order1 piece
Briefing
TR-25W Small Tape Winding Machine
Detailed
TR-25W Small Tape Winding Machine
Product Highlights
1.Wide Compatibility with Tapes and Wires
Compatible with various tapes including PVC, vinyl, flannel cloth, cloth-based tape, high-temperature tape, ceramic tape, etc. It fits wire diameters of 3–25 mm and tape widths of 5–25 mm. Custom inner diameters of tape rolls are available to meet diverse wire harness processing requirements.
2.Adjustable Parameters for Precise Winding
9-speed adjustable winding speed (1–9 gears), programmable spot winding cycles from 1 to 99 turns, and bidirectional left/right spiral winding. Standardized winding tension and turns ensure uniform finished products.
3.Specially Designed for Short & Multi-branch Wires
Optimized for winding short wires and multi-branch wire harnesses, solving the pain points of irregular and inefficient manual wrapping of complex branched cables.
4.Compact & Lightweight for Flexible Layout
Overall dimension: W300L250H330 mm, net weight only 10 kg. Small footprint saves workshop space and allows easy placement and movement on assembly workbenches.
5.Universal Wide Voltage Compatibility
Supports universal 100–240V, 50/60Hz power supply. Works directly in domestic and overseas workshops with different power grids without extra transformers.
6.User-friendly & Easy Operation
Equipped with a digital display for intuitive parameter setting. Simple structure for quick setup; operators can master the machine with minimal training, replacing manual winding to boost production efficiency.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR-25W Small Tape Winding Machine | |
Power | 100-240V 50/60HZ | |
Size & Weight | 300x250x330mm,10kg | |
Wire Diameter | 3-25mm | |
Tape Width | 5-25mm | |
Winding Method | Spiral Winding | |
Winding Direction | Left and Right | |
Tape Inner Diameter | Max.110mm | |
Tape Outer Diameter | 38mm/32mm (optional), other sizes customizable | |
Speed | 1-9 Gears | |
Spot Winding Loops | 1-99 Loops | |
Applicable Tapes | PVC, Vinyl, Flocked Cloth, Cloth-backed Tape, Ceramic
Tape,High-temperature Resistant Tape, etc. | |
