TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
- group name
- Fully Automatic Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-22D+S
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 16 Oct 2025 19:22:39 GMT
Paramtents
Power AC220V/50HZ,
Application terminal crimping machine
Feature Stable Performance
Warranty 1year
Contact CoCo 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

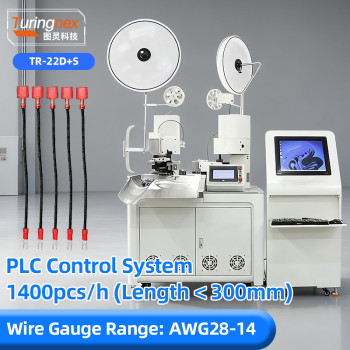

TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
Detailed
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
Applicable Wire Range：AWG28 - AWG14
Stripping/Twisting Length：7 - 12mm
Cutting Precision：±(0.5 + 0.002 * L) mm, L = Cutting Length
Cutting Length：50 - 9999mm
Crimping Force：2.0T
Applicator：30mm or 40mm stroke optional
Air Pressure：4 - 6KGF
Detection：Wire exhaustion, low air pressure, termination error (crimping force monitor optional)
Power：220V/110V/50/60hz
Display Language：Chinese/English
Dimensions：700*800 * 1500mm
Weight：358kg
