TR-360 Automatic Marking and Pipe Cutting Machine
- group name
- Pipe/Tube Cutting Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-360
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Tue, 16 Sep 2025 07:35:22 GMT
Paramtents
Power AC220V/50HZ,
Application Automatic Tube Cutting Machine
Feature Stable Performance
Warranty 1year
Packging & Delivery
-
Min Order1 piece
Briefing

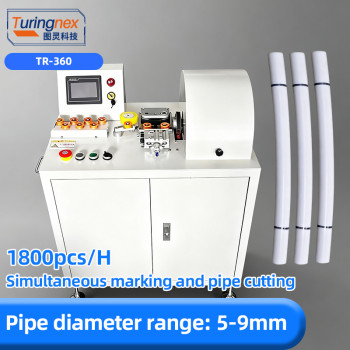

TR-360 Automatic Marking and Pipe Cutting Machine
Detailed
TR-360 Automatic Marking and Pipe Cutting Machine
Dimension and Weight: 700x460x880mm, 50kg
Power Supply: AC220V 200W
Marking Angle: 0 - 500°
Marking Length: 10 - 18mm (5 - 25mm optional)
Cutting Tolerance: (0.2±0.002×L)mm
Transmission Mode: Crawler silent conveying
Cutting Tool: High - quality white steel
Types of Pipes to Be Cut: 2 - branch pipes, 3 - branch pipes, air pipes, etc.
Pipe Cutting Range: 5 - 9mm (2 - 15mm optional)
Wire Cutting Length: 1 - 10000mm
Pipe Cutting Speed: L = 100mm, about 10000pcs/H
Marking and Cutting Speed: L = 100MM, about 1800PCS/H
Note: This machine can be connected with a foot switch for separate manual pipe insertion and marking, which is convenient for cutting pipes.
