TR-18 Cold Crimping Terminal Machine
- group name
- Wire Stripping and Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-18
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Tue, 16 Sep 2025 07:35:22 GMT
Paramtents
Power AC220V/50HZ,
Strip length 1-12mm
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

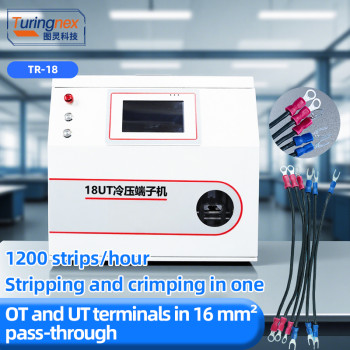

TR-18 Cold Crimping Terminal Machine
Detailed
TR-18 OT, UT Cold Crimping Terminal Machine
Power Supply: External Input: AC220V/50Hz (Single-Phase) 10A; Internal Power: DC24V
Wire Gauge Specifications: Customized per sample
Dimensions & Weight: 560x530x490mm, 60kg
Stripping Length: 1-12mm
Operation Mode: Automatic trigger operation and manual operation
Operating Speed: Approximately 1200pcs/H
Control Method: Human-machine interface, electronic control, pneumatic control
Product Changeover: Manual replacement of relevant fixtures, adjustment of vibratory feeder and electric memory for stripping length and depth
Minimum Jacket Stripping Length: 50mm (Special requirements can be accommodated upon sample submission)
Inspection Items: Terminal presence detection, right safety door open detection, pneumatic pressure alarm, etc.
Operating Temperature: 10-25°C
Operating Humidity: 30~80% RH (non-condensing)
Air Supply: 0.6-0.8 MPa (dry, clean air source maintained at ≥0.6 MPa)
