TR-16 16mm²Tubular Terminal Crimping Machine
- group name
- Wire Stripping and Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-16
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Tue, 16 Sep 2025 05:21:10 GMT
Paramtents
Power AC220V/50HZ,
Strip length 1-12mm
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

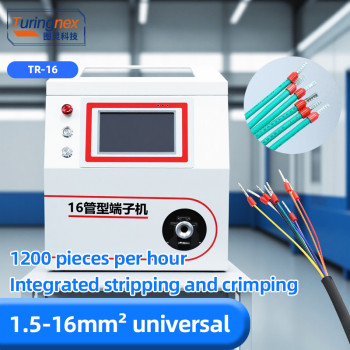

TR-16 16mm²Tubular Terminal Crimping Machine
Detailed
TR-16 16mm² Tube Terminal Crimping Machine
Power Supply: External Input: AC220V/50Hz (Single-Phase) 10A; Internal Power: DC24V
Wire Gauge Specifications: Customized per sample
Dimensions & Weight: 520x390x430mm, 50kg
Stripping Length: 1-12mm
Crimping Shape: Quadrilateral crimping
Operation Mode: Auto-triggered operation and manual operation
Operating Speed: Approx. 1200 pcs/H
Cutting Error: Within 0.05mm at 100mm
Control Method: HMI, electronic control, pneumatic control
Product Changeover: Manual replacement of relevant fixtures, adjustment of vibratory feeder and electric memory for stripping length and depth
Minimum Jacket Stripping Length: 45mm (Special requirements may be accommodated upon sample submission)
Inspection Items: Terminal presence detection, pneumatic pressure alarm, etc.
Operating Temperature: 10-20°C
Operating Humidity: 30~80% RH (non-condensing)
Air Supply: 0.6-0.8 MPa (dry, clean air source maintained at ≥0.6 MPa)
