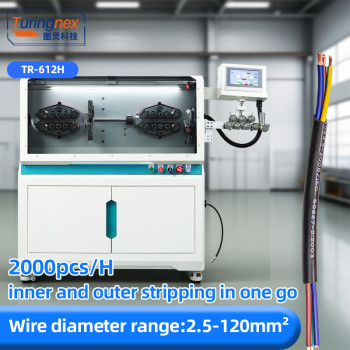

TR-612H Large square computerized wire stripping machine

Dimensions & Weight: 1020x590x1140mm, 260kg

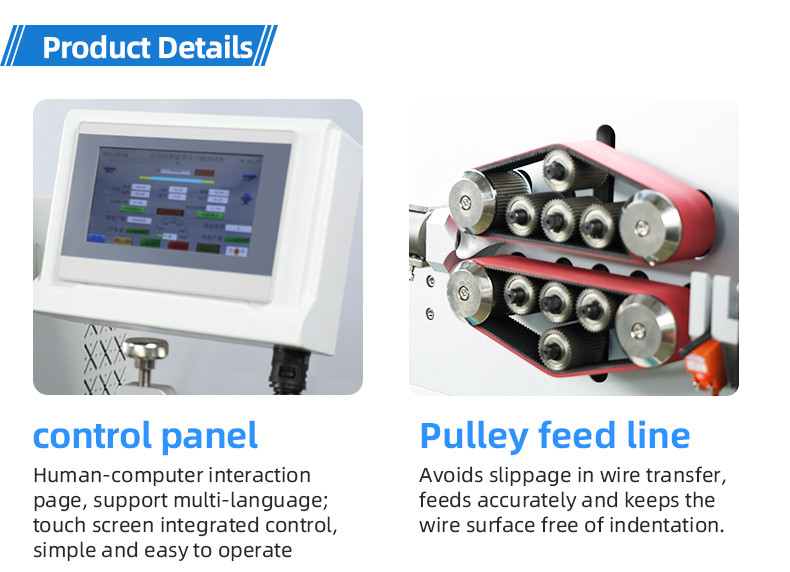

Display: 7-inch HMI

Functions:

① Fully automatic length-cutting and stripping for single-core wires, multi-core cables, and shielded cables;

② Simultaneous outer sheath stripping, inner core stripping, and cutting for multi-core sheathed cables.

Wire Types: Single-core wires, multi-core cables, shielded cables, electrical wires, PVC, etc.

Processing Range: 2.5–120 mm²

Cutting Length: 1 mm–999,999.99 mm

Cutting Tolerance: Within 0.002*L (L=cutting length)

Stripping Length:

Front Stripping: Full outer sheath removal 20-250mm, inner core 1-50mm

Rear Stripping: Full outer sheath removal 20-200mm, inner core 1-50mm

Stripping Speed: 2000 PCS/hour (1000 pcs/H for jacketed cables), subject to wire length and size

Wire Feeding Method: Belt feeding, ensuring no imprints or scratches on cables. (With stripping and pressing function)

Drive method: 24-wheel drive (stepper motor for feeding, servo motor for blade holder/rotary blade); full servo optional

Lifting operation: Digital adjustment of pressure roller height

Maximum allowable diameter: ￠27

Air source: 0.5 MPa clean air supply

Lifting method: Stepper motor lifting

Guide tube swing: Pneumatic cylinder swing
