TR-535LP Bellows cutter (with cutaway)
- group name
- Pipe/Tube Cutting Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-535LP
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Tue, 16 Sep 2025 05:31:11 GMT
Paramtents
Power AC220V/50HZ,
Application Automatic Tube Cutting Machine
Feature Stable Performance
Warranty 1year
Packging & Delivery
-
Min Order1 piece
Briefing
TR-535LP Bellows cutter (with cutaway)
Detailed

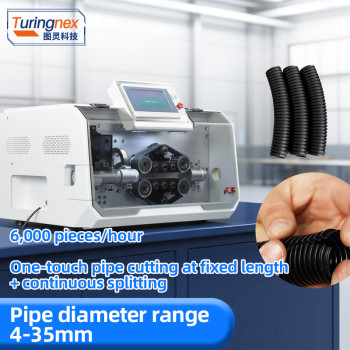

TR-535LP Bellows cutter (with cutaway)
Display: 7-inch man-machine interface
Functions: 1, corrugated pipe / PVC pipe and other thin-walled pipe fixed-length cutting and splitting;
2, splitting function: continuous splitting
Processing range: 4-35mm
Cutting length: 1mm-999999.99mm
Cutting tolerance: within 0.005 * L (L = cutting length)
Efficiency: 6,000 / hour (according to the length of the pipe, the size of the decision)

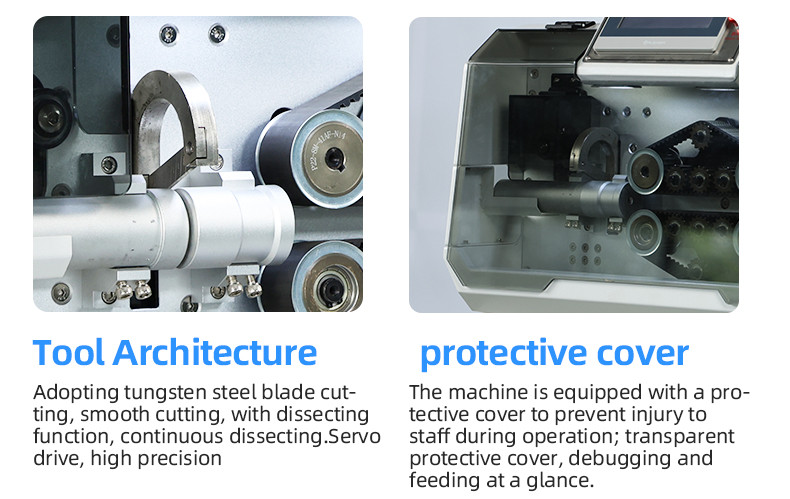

Driving mode : 10-wheel drive; optional servo motor
Feeding method: belt feeding, no embossing and scratching of the pipe.
Lifting operation mode: digital adjustment of press wheel height
Slitting power mode: servo motor
Slitting speed adjustment: touch screen stepless speed regulation
Slitting adjustment mode: touch screen digital adjustment
Lifting operation mode: digital adjustment of press wheel height
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air supply: no air supply needed
Dimensions (L*W*H): 680*605*520mm
Net weight: 75kg
