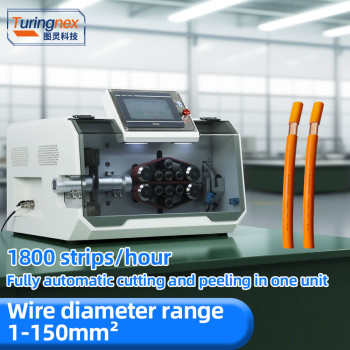

TR-615Q 150 mm² fixed-length cut-off + front-end stripper (Wire diameter range:0.25-30mm²)

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-615Q

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Tue, 16 Sep 2025 07:50:44 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 1-150mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-615Q 150mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)
CoCo +86 18666170785

Detailed

TR-615Q 150mm² multi-purpose cut-off machine (Fully automatic cut-to-length + front-end stripping)

Model: TR-615Q

Display: 7-inch human-machine interface

Function: Wire, cable, flat wire, soft copper row, sheath tube, and other kinds of PVC hose, fully automatic cutting + front stripping

Type of wire: wire, cable, flat wire, soft copper row, sheath tube, and other kinds of PVC hose

Processing range: 1-150 sq. ft.

Cutting length: 1mm-999999.99mm

Cutting tolerance: wire type within 0.002*L (L=cutting length, hose type within 0.003*L (L=cutting length) Stripping length: front stripping: 1-800mm, back stripping: none Allowable: within 0.003*L (L=cutting length) Cutting tolerance: wire within 0.002*L (L=cutting length), hose within 0.003*L (L=cutting length)

Stripping length: front stripping: 1-800mm, back stripping: no

Maximum diameter allowed: Φ33

Knife material: high-quality imported high-speed steel

Productivity: 1800 PCS/hour (according to the length of the line, the size of the decision)

Driving mode: cutter servo, feed stepping ( Optional full servo)

Wire feeding method: belt feeding, cable without embossing and scratch. (with stripping and pressurizing function)

Full load current: 18A (allow the minimum current 10A)

Power supply: 220V/50HZ ±10%

Air source: no

Special function 1: special cable can be customized, need to send a sample line for testing

Special function 2: Stripping and pressurizing, front-end full stripping of the conduit, automatic wire detection

Auxiliary functions: optional: rewinding clamps, rewinding robot, rewinding rack. (Please add module isolation when using)
