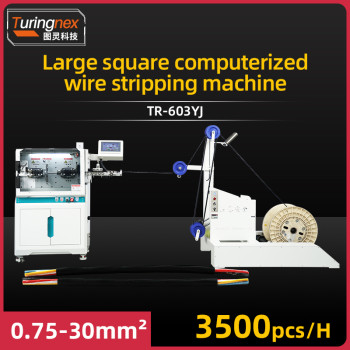

TR-603YJ Large square computerized wire stripping machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-603YJ
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 02 Aug 2025 15:56:01 GMT

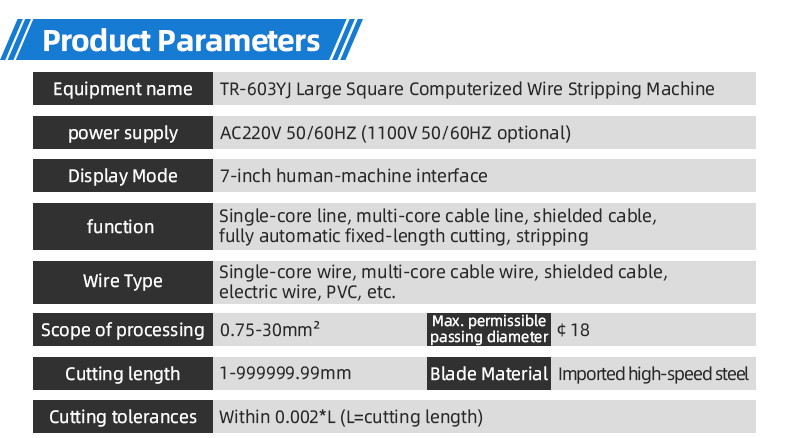

Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

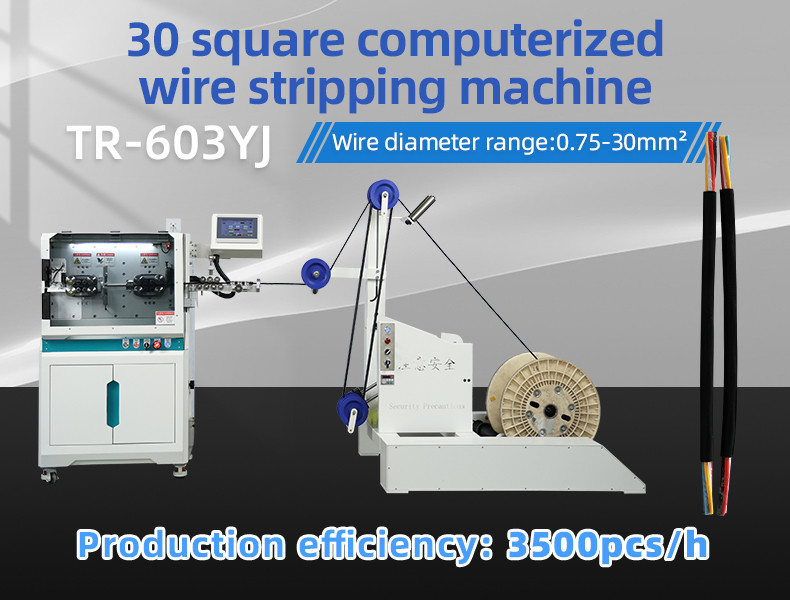

TR-603YJ Large square computerized wire stripping machine
CoCo +86 18666170785
CoCo +86 18666170785
Detailed

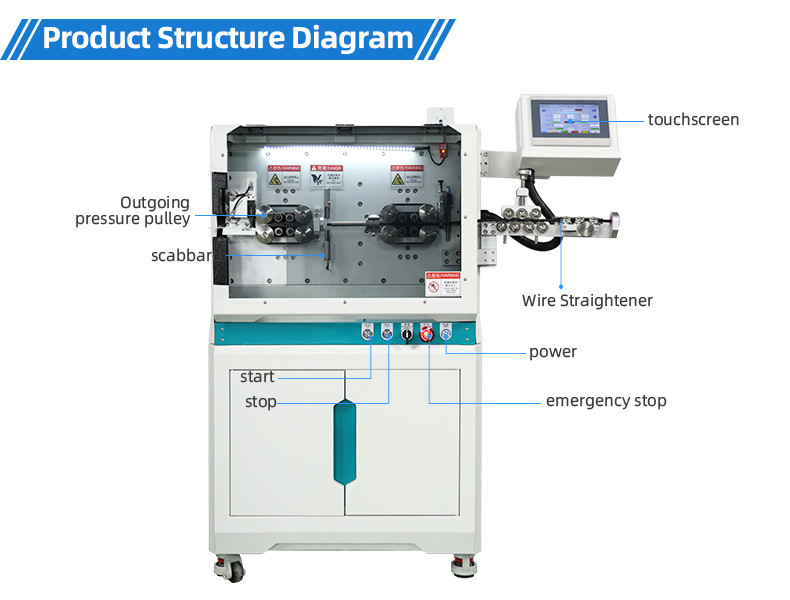

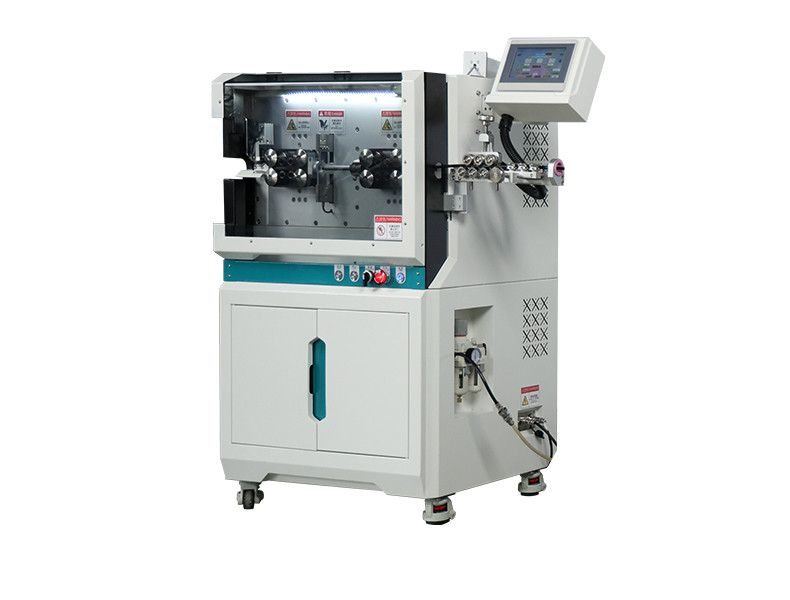

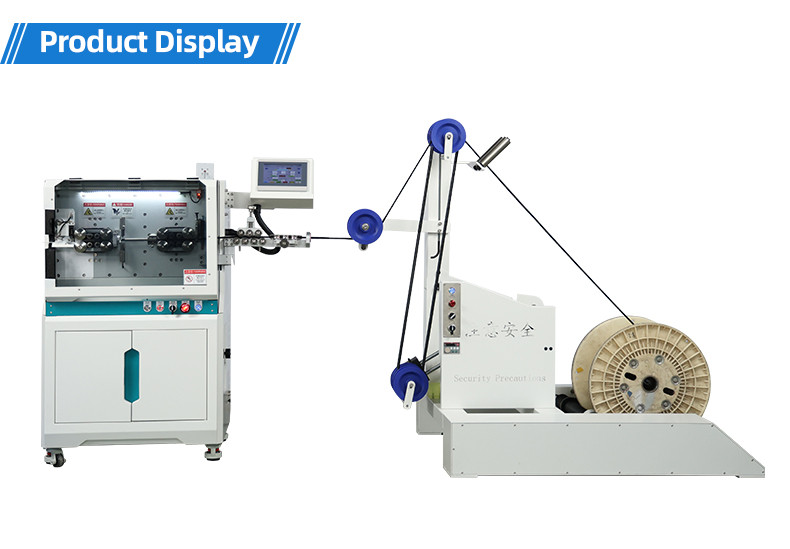

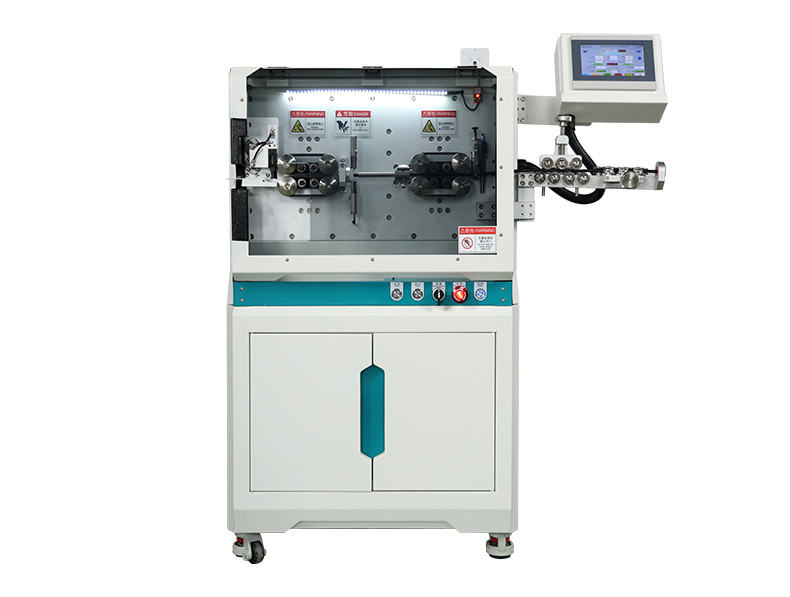

TR-603YJ Large square computerized wire stripping machine
Size and weight: 707x590x1140mm，140kg

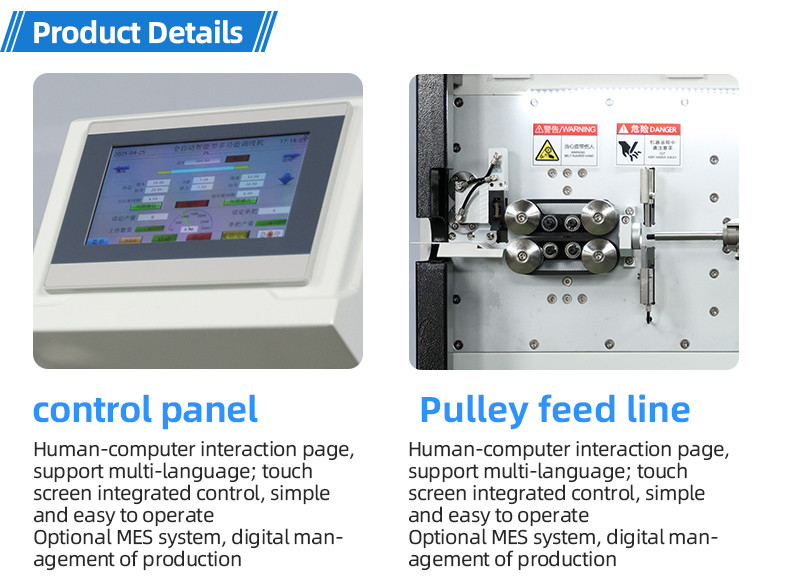

Display: 7 inch human-machine interface

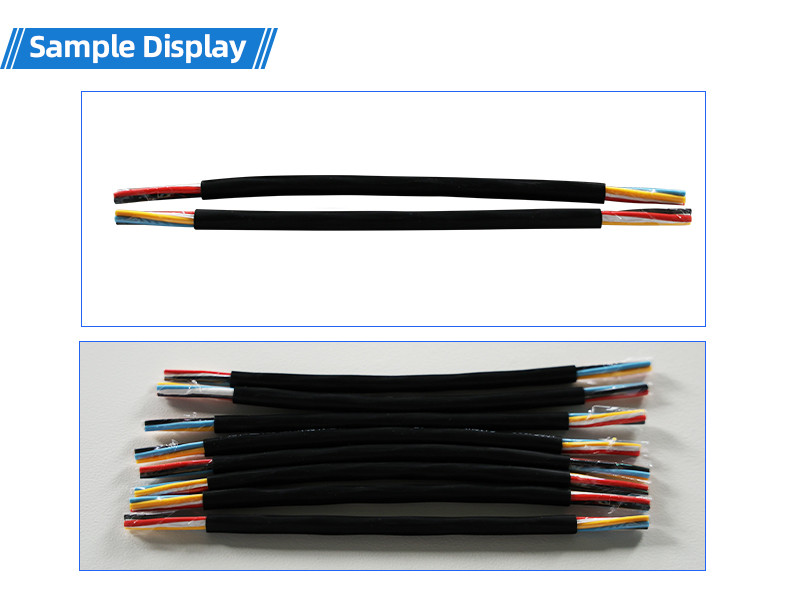

Function: single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping
Type of conductor: single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.
Processing range: 0.75-30mm²
Cutting length: 1mm-999999.99mm
Cutting Tolerance: within 0.002*L (L=cutting length)

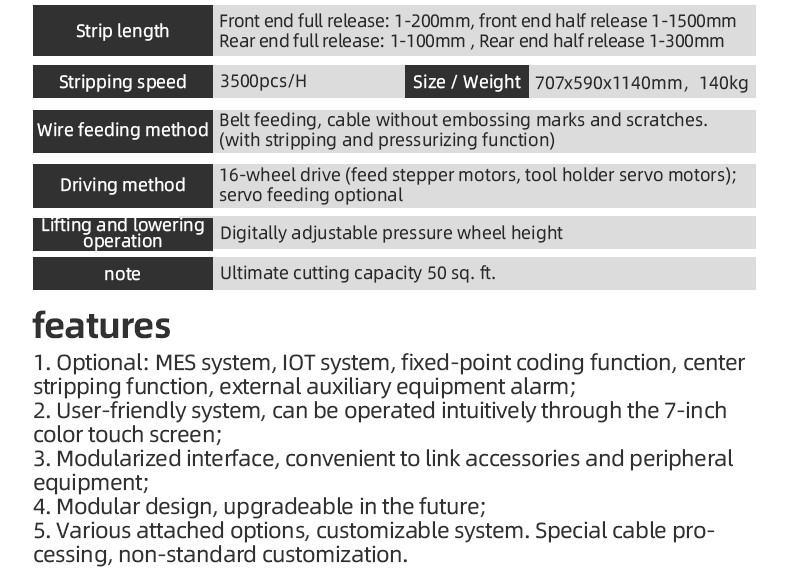

Stripping length: front end full stripping: 1-200mm , front end half stripping 1-1500mm
Back end full stripping: 1-100mm , back end half stripping 1-300mm

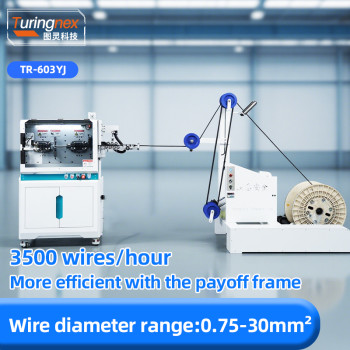

Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire)
Feeding method: belt feeding, no embossed mark and no scratches on the cable. (with stripping and pressurising function)

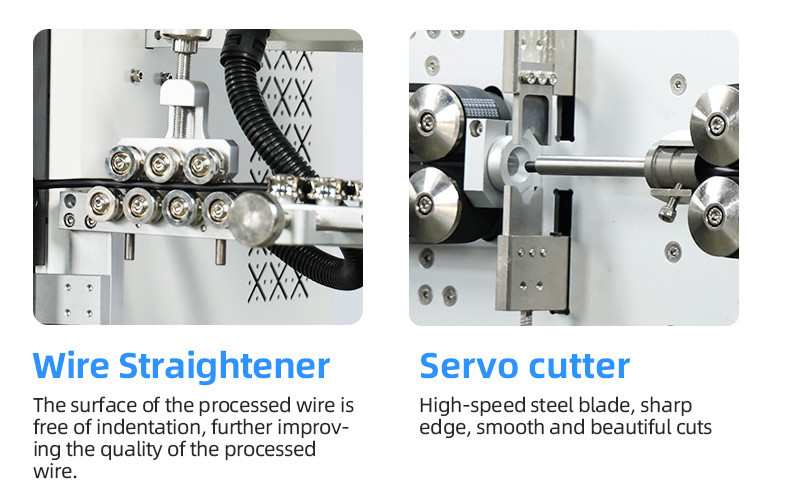

Driving mode: 16-wheel drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo
Lifting operation mode: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢18
Air source: 0.5Mpa clean air source
Wheel lifting mode: stepping motor wheel lifting
Swinging conduit mode: pneumatic cylinder swinging conduit
Note：Ultimate cutting capacity 50 sq. ft.
