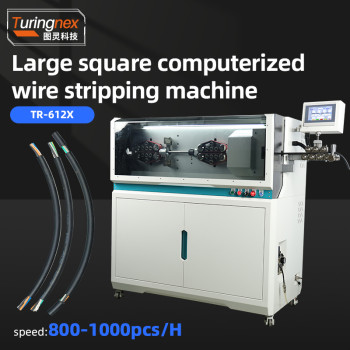

TR-612X Large square computerized wire stripping machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-612X

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 02 Aug 2025 05:29:59 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 6-12mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-612X Large square computerized wire stripping machine
CoCo +86 18666170785

Detailed

TR-612X Large square computerized wire stripping machine

Size and weight: 128x48x135cm, 180kg

Display: 7 inch human-machine interface

Function:

1, power line, corrugated line, base station coaxial line, cable line, multi-core line, multi-layer line, shielded line, charging line of new energy vehicle charging piles and other large cable processing;

2, this machine uses the rotary cutting method, without changing the blade, you can cut off and strip all the different specifications of the type of cable line. and stripping process without changing blades.

3, can store 100 groups of processing parameters and recipes.

Wire type: single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc.

Processing range: 6-120mm²

Cutting length: 1mm-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front end full stripping: 1-300mm, front end half stripping 1-1000mm

Rear end full stripping: 1-150mm, rear half stripping 1-500mm Stripping speed: 1-150mm, rear half stripping 1-1,000mm. 1-500mm

Stripping speed: 800-1000PCS/hour (according to the length and size of the wire)

Wire feeding method: belt feeding, no embossing and scratching on the cable. (with stripping pressurisation function)

Driving method: 24 wheel drive (feeding stepping motor, knife holder\rotary knife servo motor); optional full servo

Lifting operation: digital adjustment of the pressure wheel height

Allowed to pass through the maximum diameter: ¢ 24

Blade material: imported high-speed steel

Rotary stripping knife feeding method: grinding screw

Rotary stripping knife number: 2 pieces

Rotary stripping knife material: white steel/tungsten steel (optional)

Rotary stripping knife power: feeding: servo. Rotation: servo

Stripping auxiliary clamp: servo + grinding screw

Wheel lifting mode: stepping motor lifting wheel

Pendulum tube mode: cylinder pendulum tube
