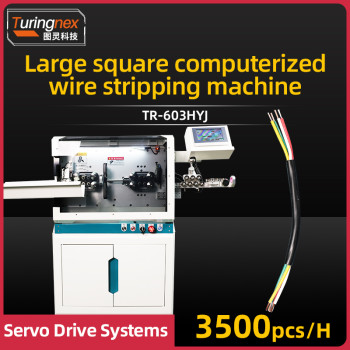

TR-603HYJ Large Square Computerized Wire Stripping Machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-603HYJ

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Wed, 02 Jul 2025 00:06:54 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

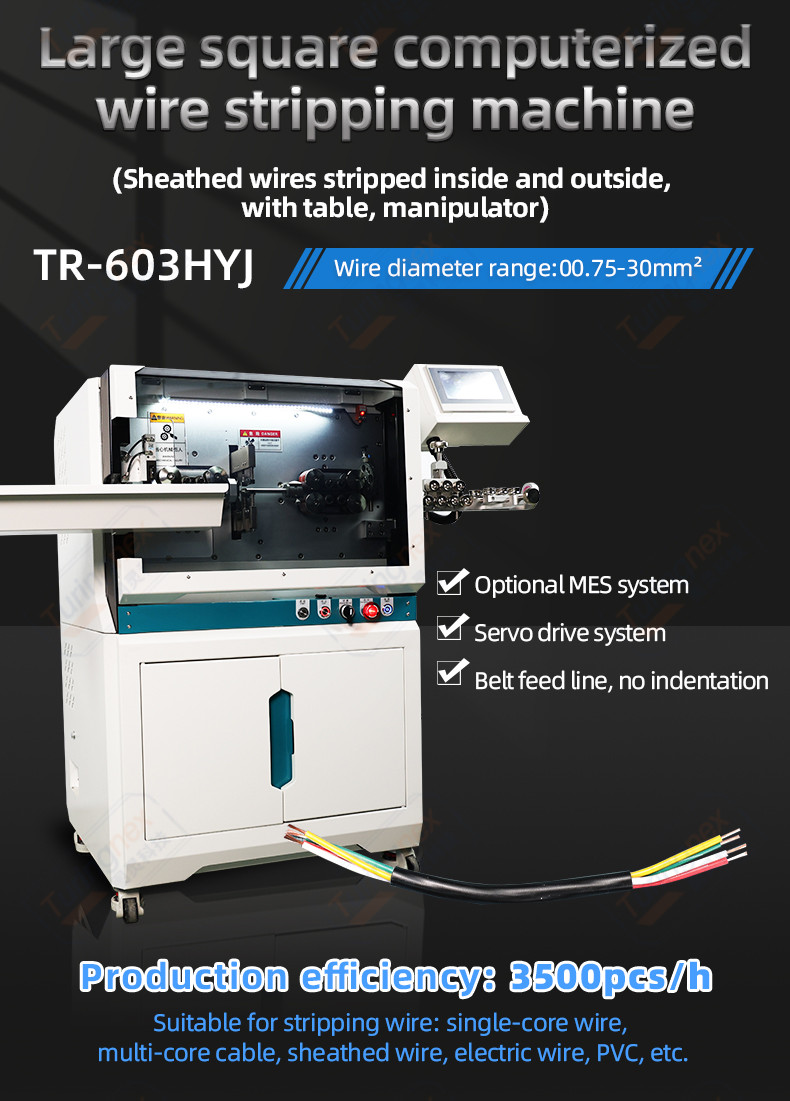

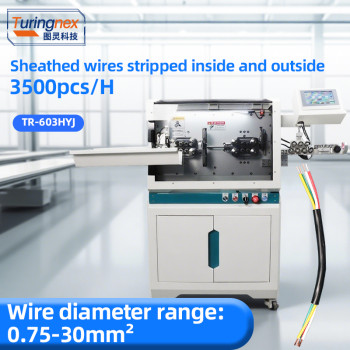

TR-603HY Large Square Computerised Wire Stripping Machine (Sheathed wires stripped inside and outside, with table, manipulator)

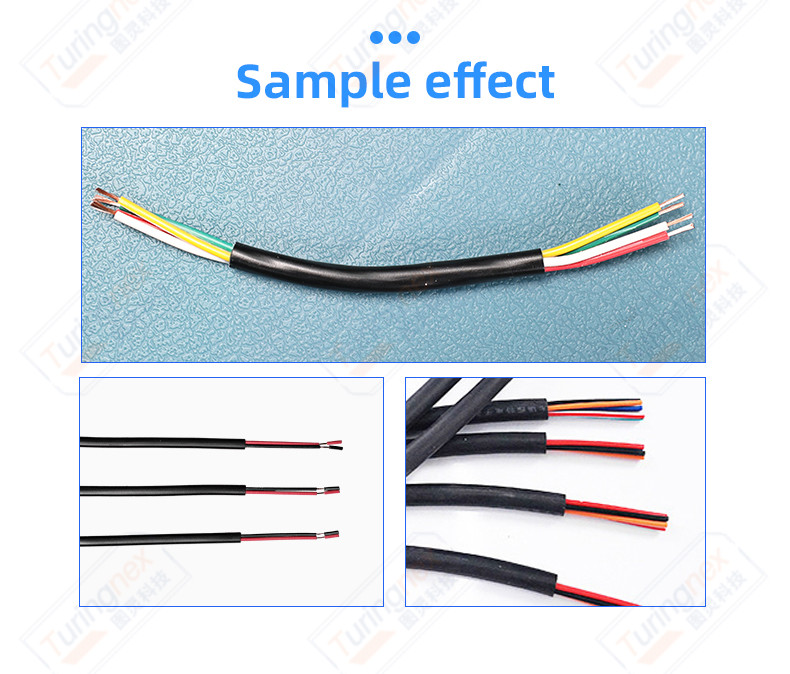

Functions: ①Single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping;
② multi-core sheathed wire, outer skin peeling, inner core wire peeling, cutting off a complete.

Detailed

TR-603HY Large Square Computerised Wire Stripping Machine (Sheathed wires stripped inside and outside, with table, manipulator)

Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)

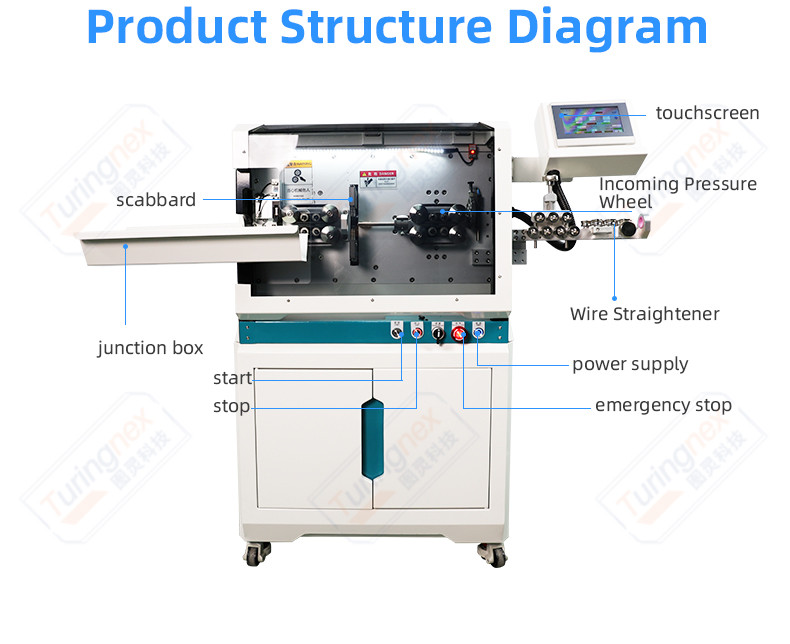

Display: 7-inch man-machine interface

Function: ① single-core wire, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping;

② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off at once.

Wire type: single-core wire, multi-core cable, shielded cable, electric wire, PVC, etc.

Processing range: 0.75-30mm²

Cutting length: 1-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front stripping: outer jacket fully stripped 10-200mm, inner core wire 1-50mm

Back stripping: outer jacket fully stripped 10-80mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Core wire 1-50mm

Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire

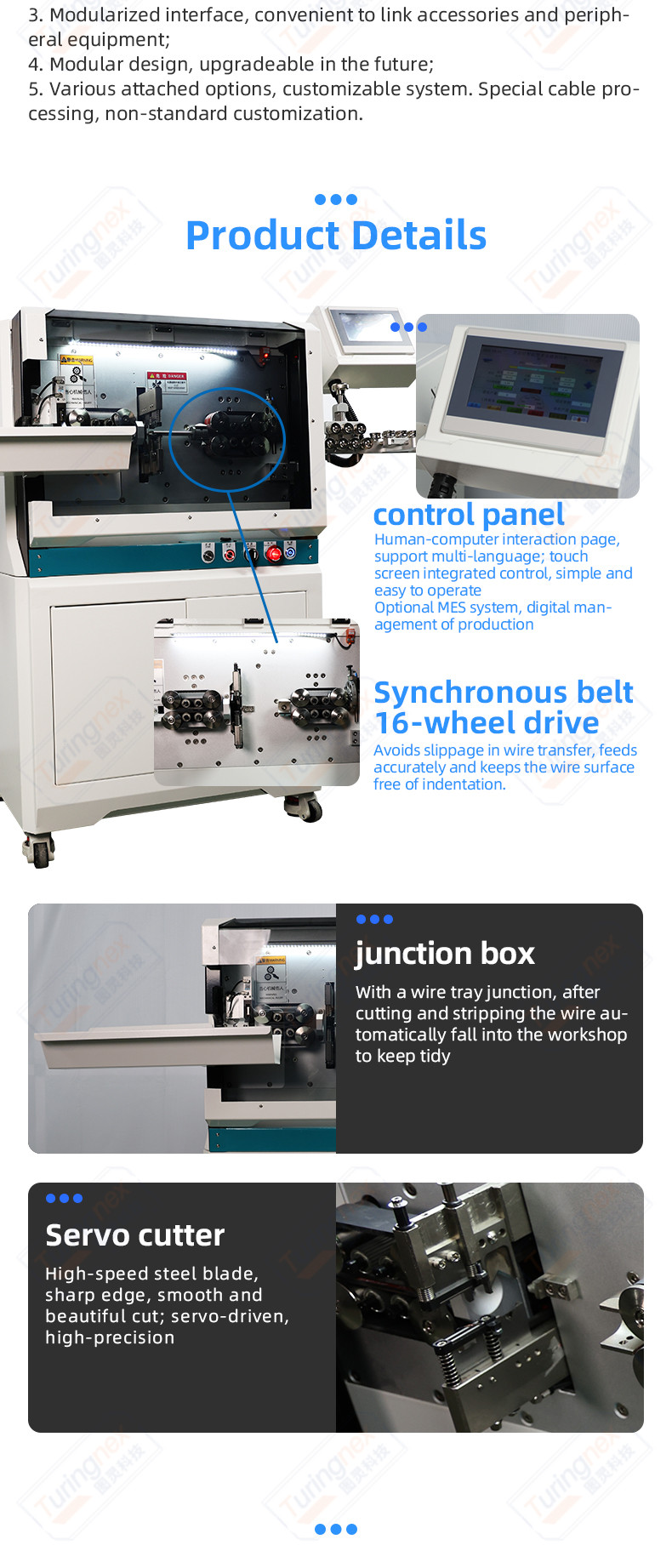

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)

Driving mode: 16 wheels drive (feeding stepping motor, knife holder servo motor)

Lifting operation mode: digital adjustment of the height of the pressure wheel

Dimensions and weight: 707x590x1140mm, 140kg

Allowed to pass through the maximum diameter: 18mm

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source

features

1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;

2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;

3. Modularized interface, convenient to link accessories and peripheral equipment;

4. Modular design, upgradeable in the future;

5. Various attached options, customizable system. Special cable processing, non-standard customization.
