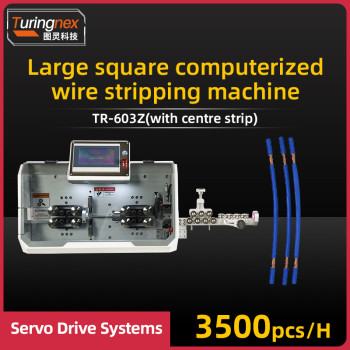

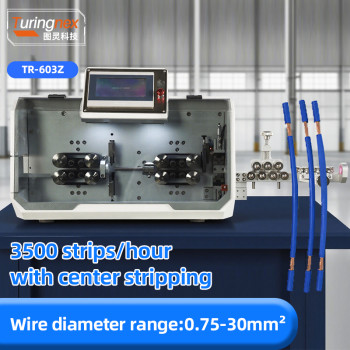

TR-603Z Large Square Computerized Wire Stripping Machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-603Z

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Tue, 01 Jul 2025 18:02:23 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

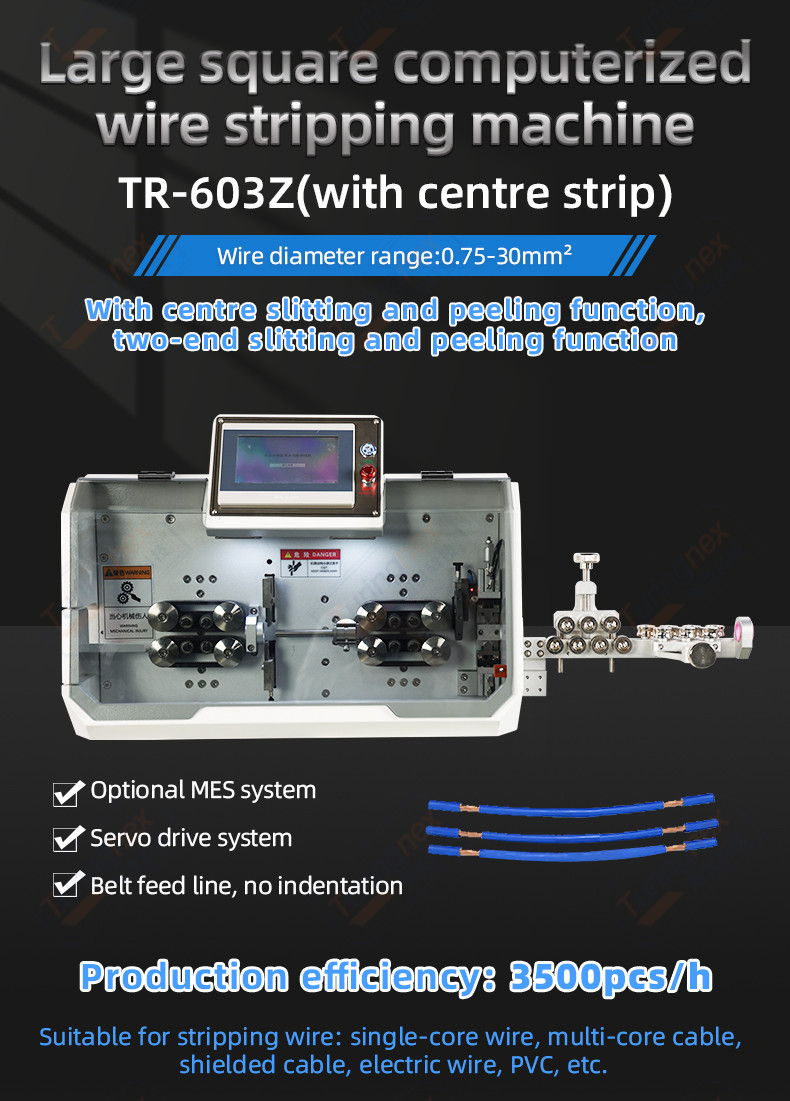

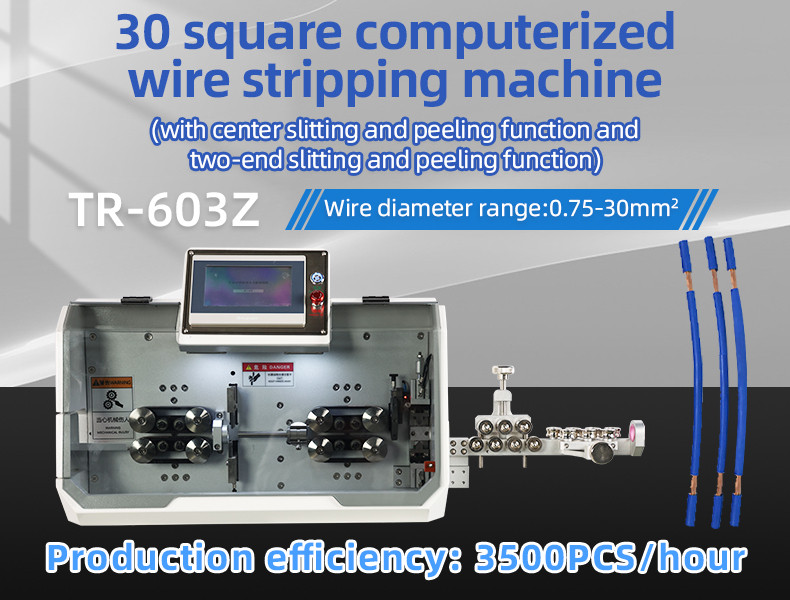

TR-603Z Large Square Computerized Wire Stripping Machine.

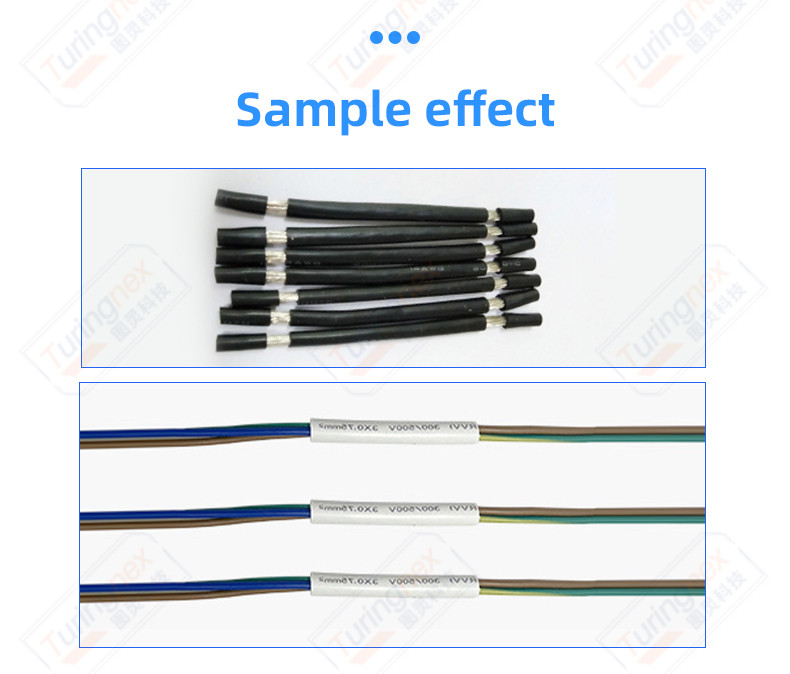

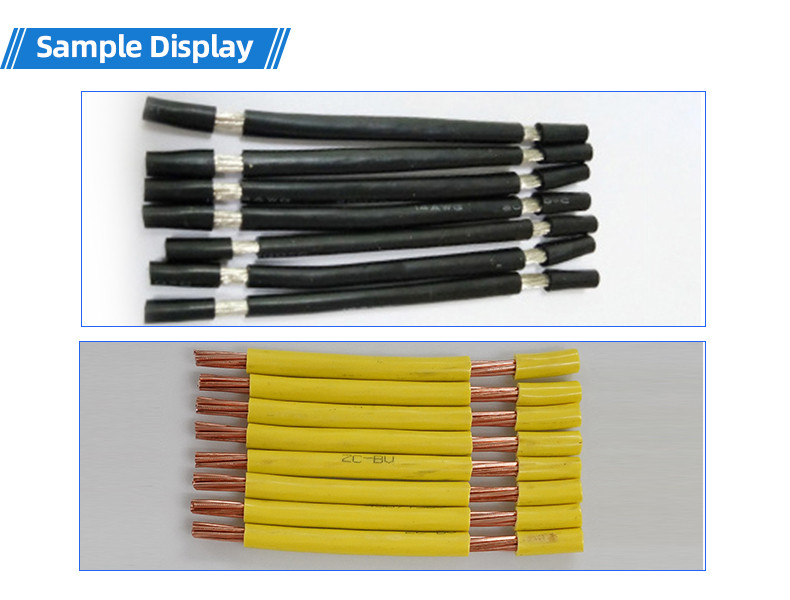

Functions: ① single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting, stripping
② with the middle of the cut open stripping function, the two ends of the cut open stripping function
CoCo +86 18666170785

Detailed

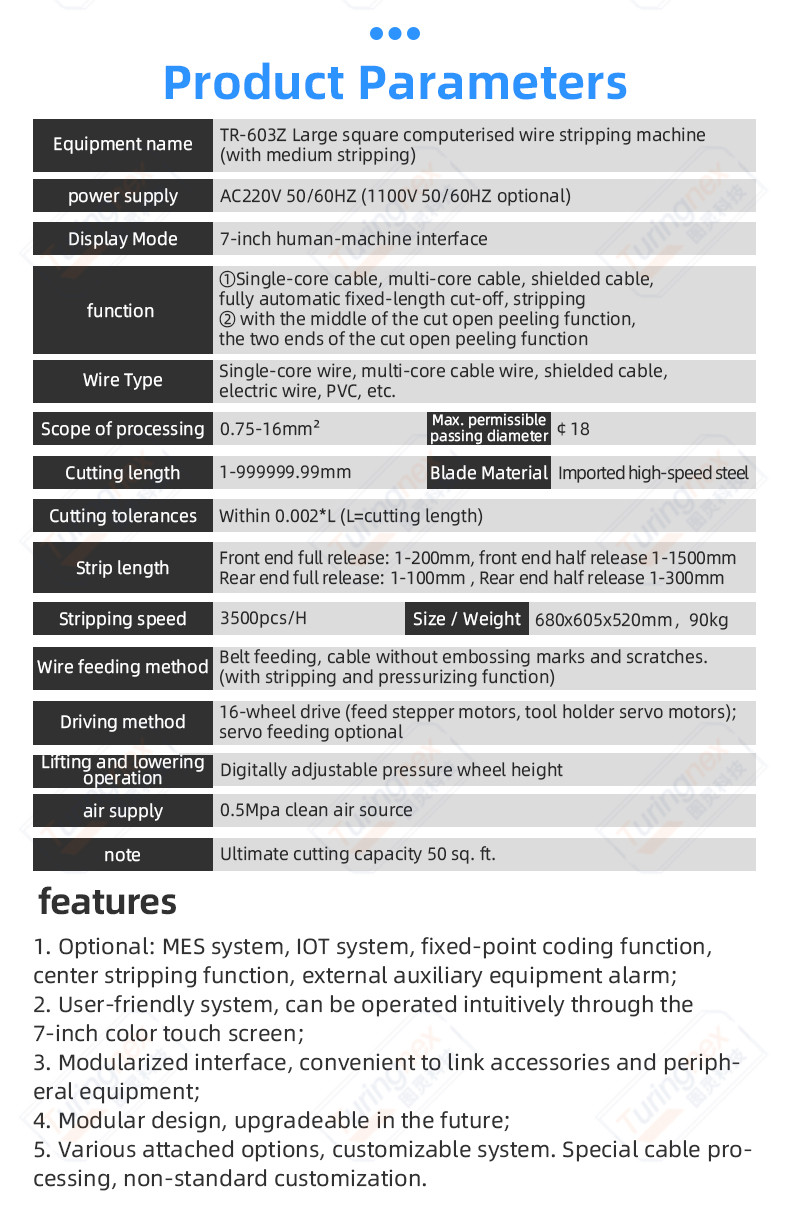

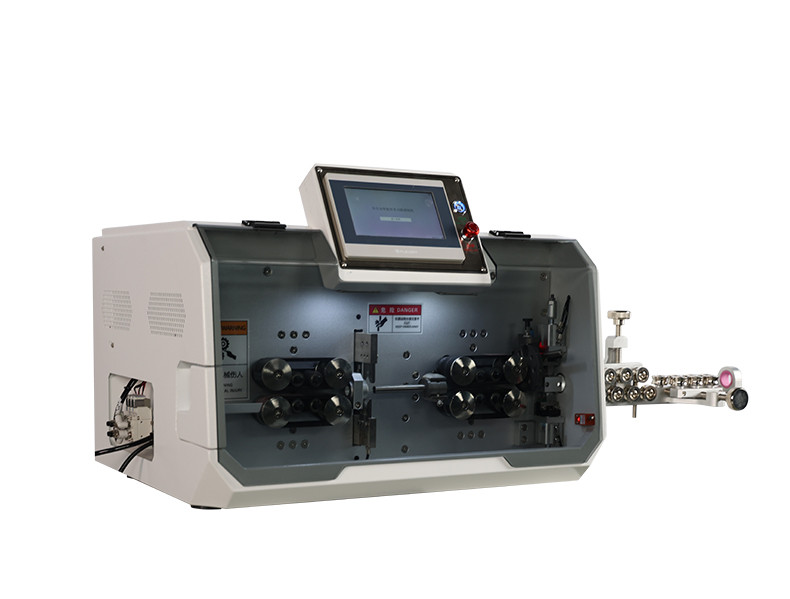

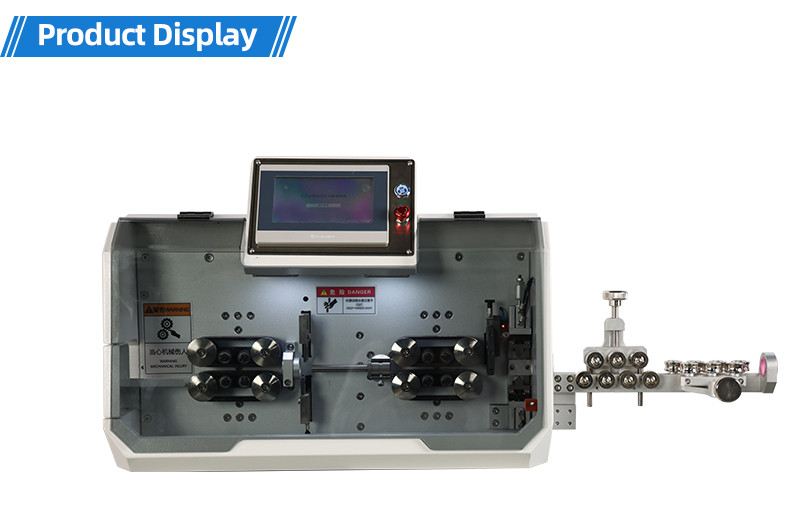

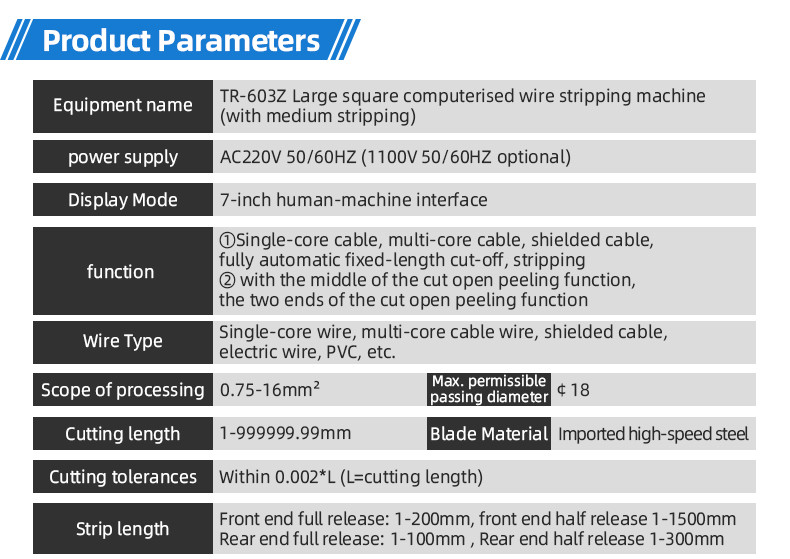

TR-603Z Large Square Computerized Wire Stripping Machine

Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)

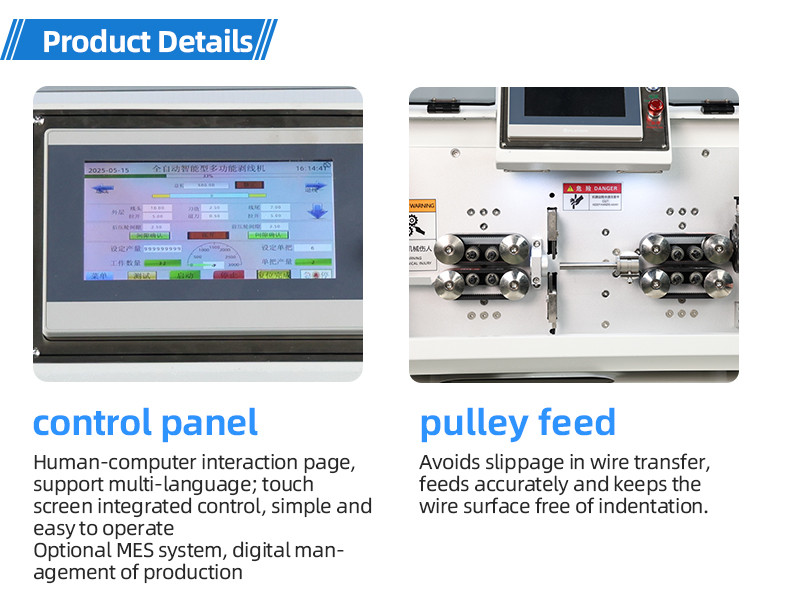

Display: 7-inch man-machine interface

Functions: ① single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting, stripping

② with the middle of the cut open stripping function, the two ends of the cut open stripping function

Type of conductor: single-core wire, multi-core cable, shielded cables, wires, PVC, etc.

Processing range: 0.75- 30mm² Cutting length: 1-999999.99mm Cutting tolerance: 0.002*L or less (L=cutting length) 30mm²

Cutting length: 1-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front end fully stripped: 1-200mm, front end half stripped 1-1500mm

Rear end fully stripped: 1-100mm, rear end half stripped 1-300mm

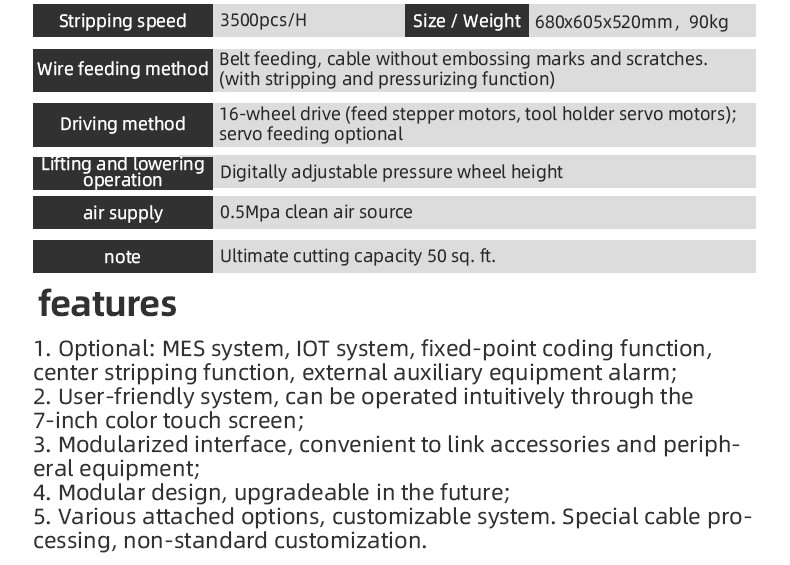

Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire to be determined)

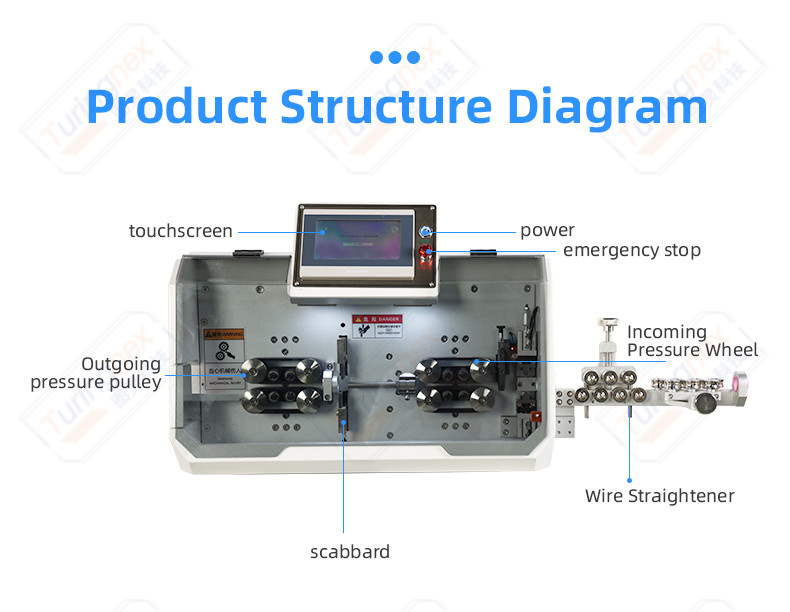

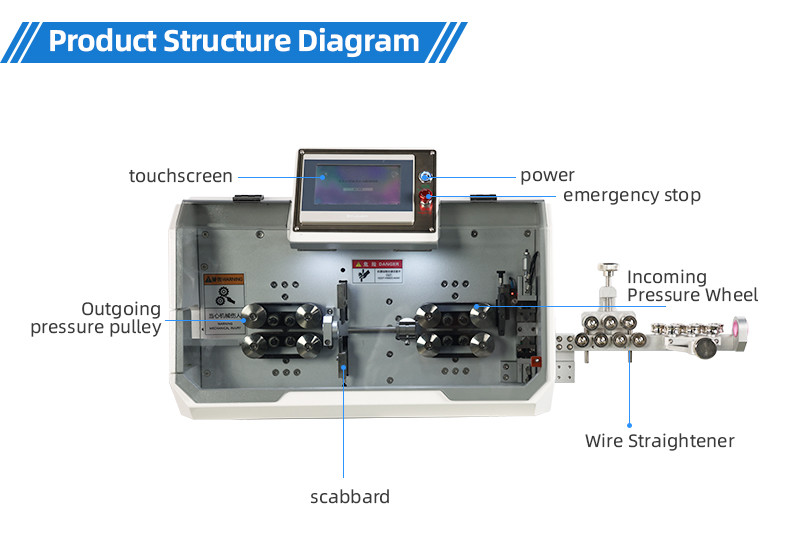

Feed wire Method: Belt feeding, no embossed marks and scratches on the cables. (with stripping and pressurising function)

Driving method: 24 wheels drive (feeding stepping motor, knife holder servo motor)

Lifting operation method: digital adjustment of the height of the pressure wheel

Dimensions and weight: 680x605x520mm, 90kg

Allowable through the maximum diameter: 18mm

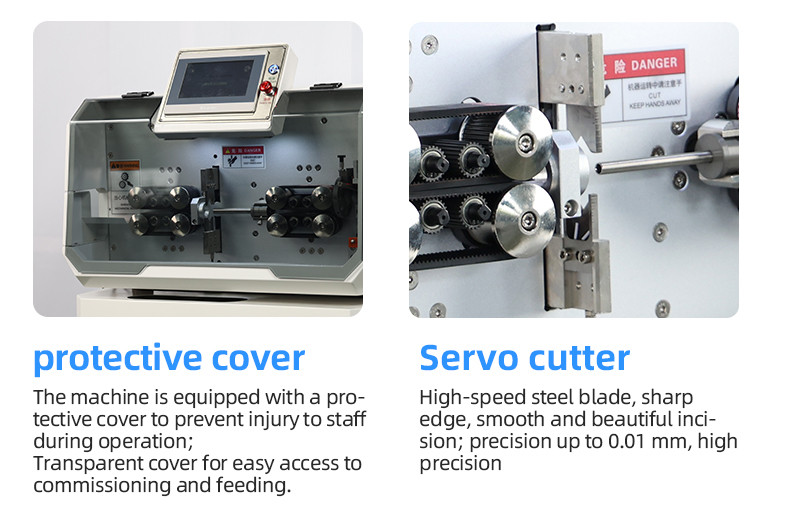

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source

features

1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;

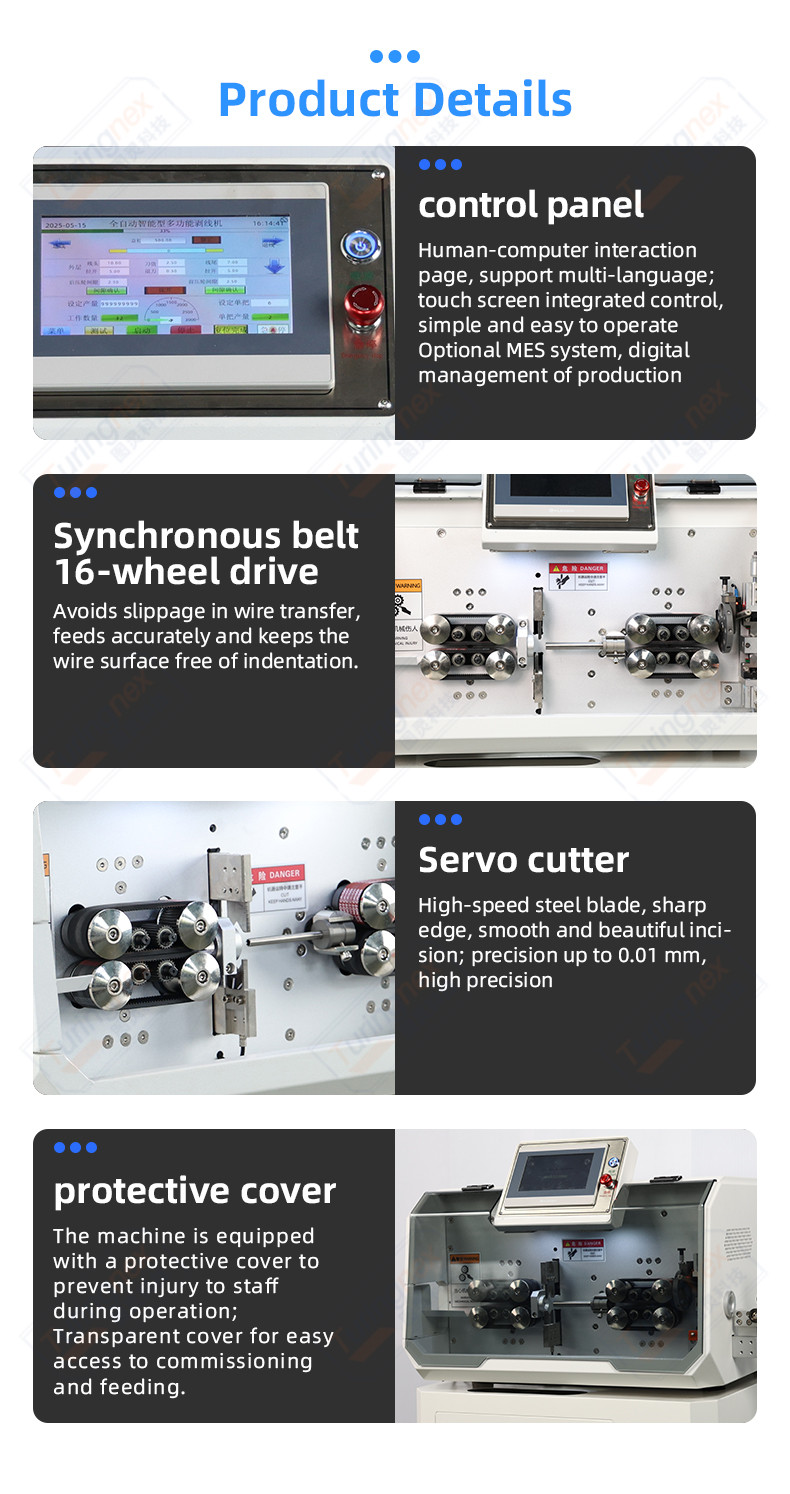

2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;

3. Modularized interface, convenient to link accessories and peripheral equipment;

4. Modular design, upgradeable in the future;

5. Various attached options, customizable system. Special cable processing, non-standard customization.
