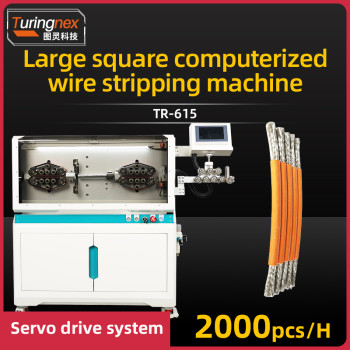

TR-615 Large Square Computerized Wire Stripping Machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-615

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Tue, 01 Jul 2025 19:47:45 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1-999999.99mm
Scope of processing 2.5-150mm²
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-615 Large Square Computerized Wire Stripping Machine
CoCo +86 18666170785

Detailed

TR-615 Large Square Computerized Wire Stripping Machine

Power Supply: AC220V 50/60HZ (Optional 1100V 50/60HZ)

Display: 7 inch HMI

Function: Single core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping

Type of conductor: single-core wire, multi-core cable wire, shielded cable, wire, PVC, etc.

Processing Range: 2.5-150mm2 Cutting Length: 2.5-150mm2 Cutting Tolerance: Stripping Length: Stripping Speed: Feeding Method: Driving Method: Lifting Operation: Dimensions and Weight: 1020x590x1140mm 150mm²

Cutting length: 1-999999.99mm

Cutting tolerance: within 0.002*L (L=cutting length)

Stripping length: front full off:1-300mm, front half off 1-1000mm; rear full off:1-150mm, rear half off 1-500mm

Stripping speed: 2000PCS/hour (according to the length of the wire, the size depends)

Wire feeding method: belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)

Driving method: 24 wheels drive (feeding stepping motor, knife holder servo motor)

Lifting operation method: digital adjustment of the height of the pressure wheel

Dimensions and weight: 1020x590x1140mm,270kg

Allowable through the maximum diameter: 33mm

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source

features

1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;

2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;

3. Modularized interface, convenient to link accessories and peripheral equipment;

4. Modular design, upgradeable in the future;

5. Various attached options, customizable system. Special cable processing, non-standard customization.
