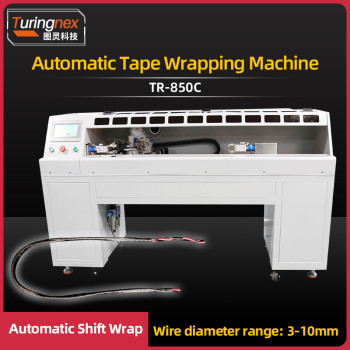

TR-850C Automatic Tape Winding Machine

group name: Full tape wrapping machine

Min Order: 1 piece

brand name: Turing

model: TR-850C

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Wed, 10 Jun 2026 16:02:37 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
operating mode Touch Screen
power supply AC220V/DC24V
Warranty 1year
Wire diameter 3-10MM

Packging & Delivery

45cm x35cm x50cm
Min Order1 piece

Briefing

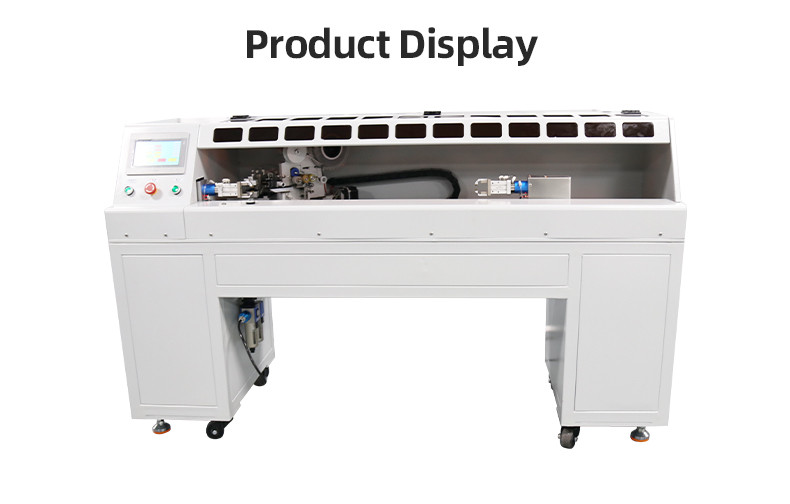

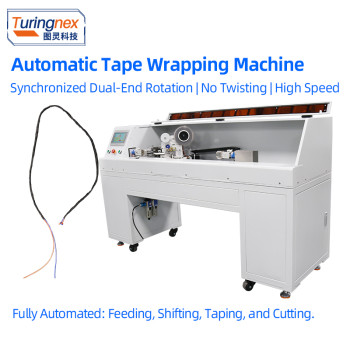

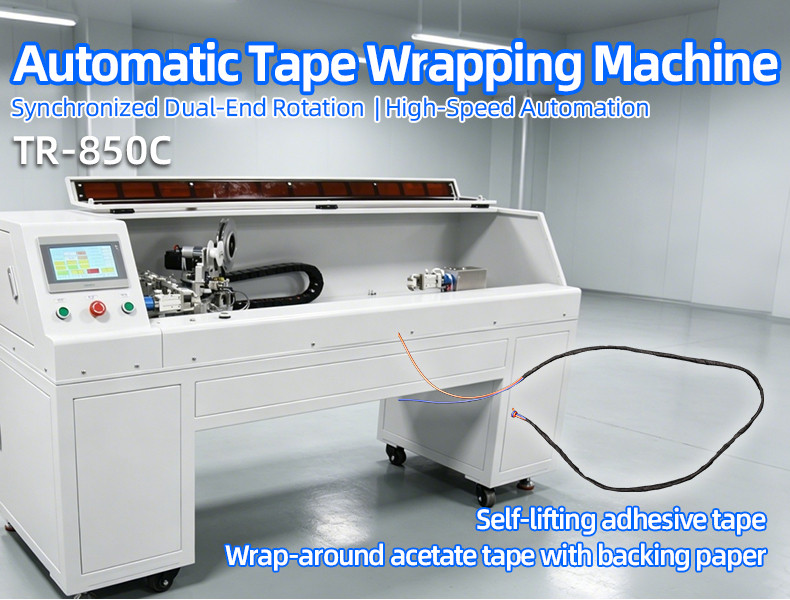

TR-850C Automatic Tape Winding Machine

Detailed

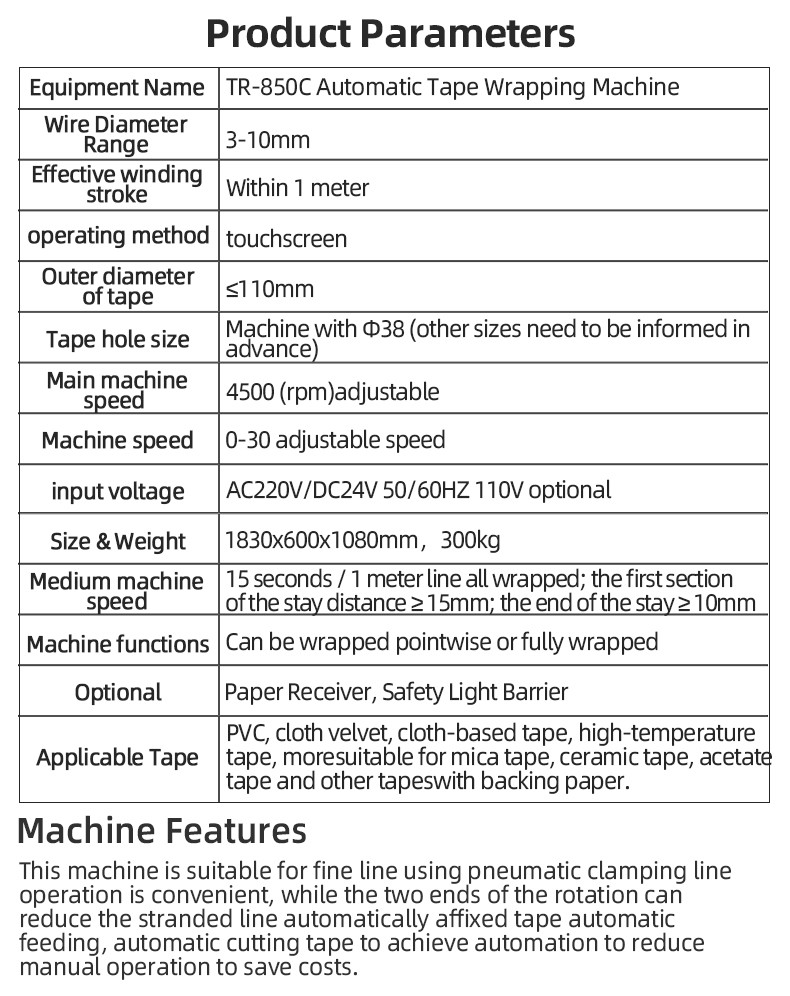

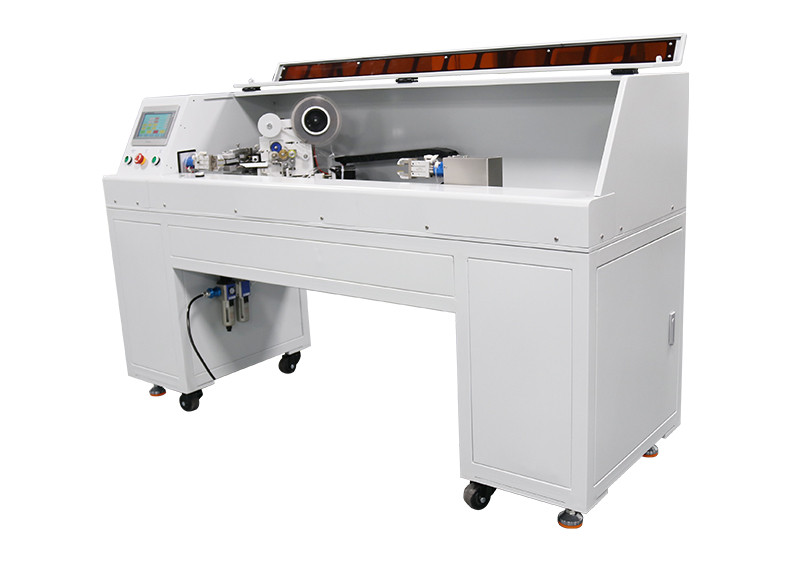

TR-850C Automatic Tape Winding Machine

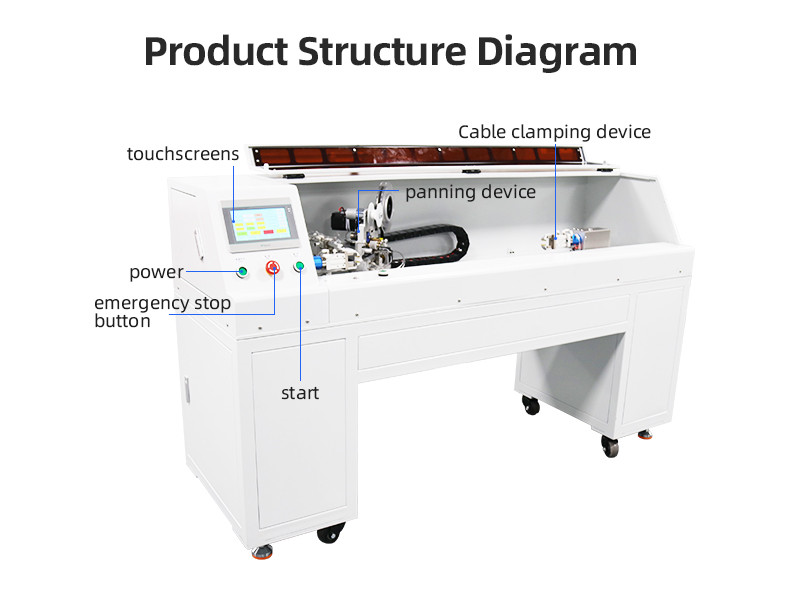

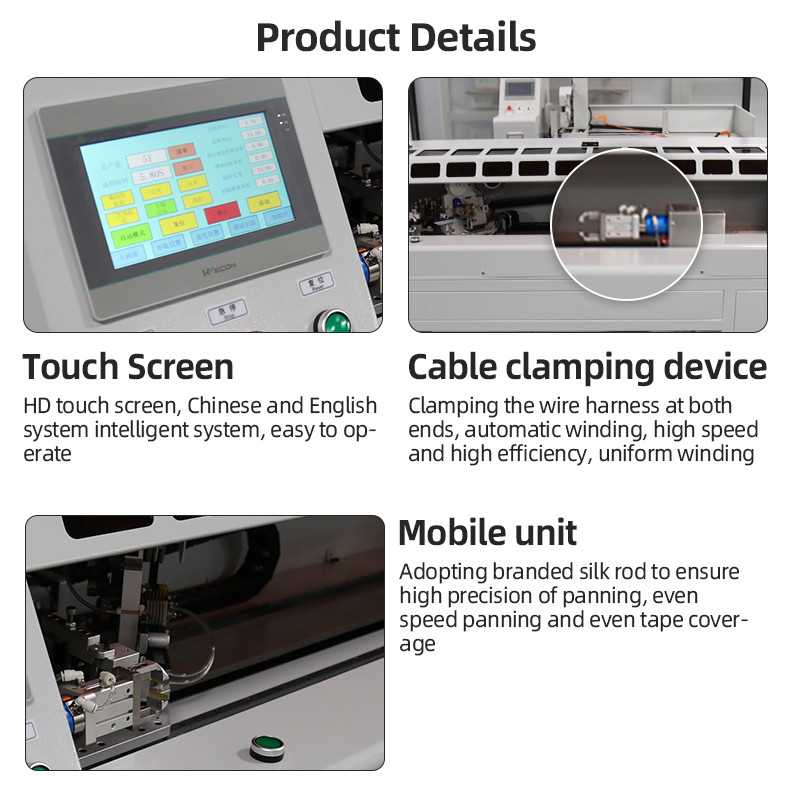

Operation: Touch Screen

Effective Winding Stroke: within 1 meter

Applicable Wire Diameter: 3-10mm

Hole Size of Tape: Ф38 (other sizes Ф32, Ф76 ....) (need to be informed in advance)

Host speed (rpm): 4500 rpm adjustable

Applicable tape: PVC, cloth velvet, cloth-based tape, high-temperature tape, more suitable for mica tape, ceramic tape, acetate tape and other adhesive tape with backing paper.

Voltage: AC220V/DC24V 50/60HZ 110V Optional:

Outer diameter of the tape: ≤ 110

Medium speed of the machine: 15 seconds / 1 meter line Full winding The first section of the stay ≥ 15mm The end of the stay ≥ 10mm

Speed of the machine: 0-30 adjustable

Length, width, and height: 1830 * 600 * 1080mm

Gross weight of the machine: 300KG

Dimensions and weight of the wooden frame: 1910 * 75.0 * 1300mm, 348KG. 1300mm, 348KG

machine can be optional: plus paper collector, plus safety grating

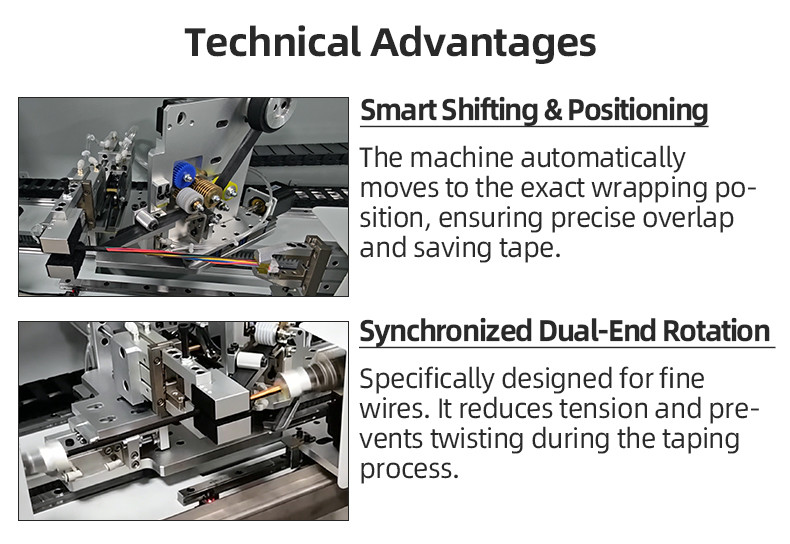

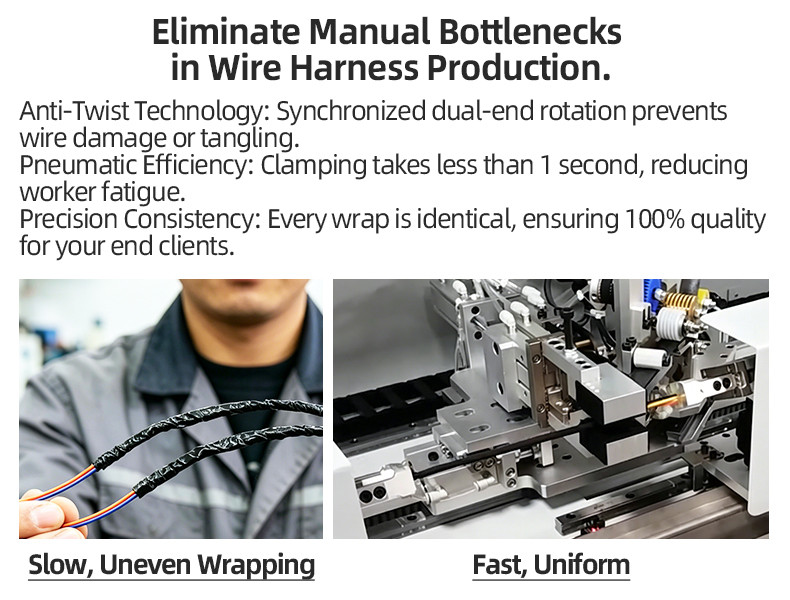

machine features: this machine is suitable for fine line pneumatic clamping line operation is convenient, while the two rotating can reduce the stranded line automatically paste tape automatic feeding, automatic cutting tape to achieve automation to reduce manual operation to save costs.

Machine function: can point winding can full winding

TR-303K Semi-automatic Single Pull Tape Wrapping Machine

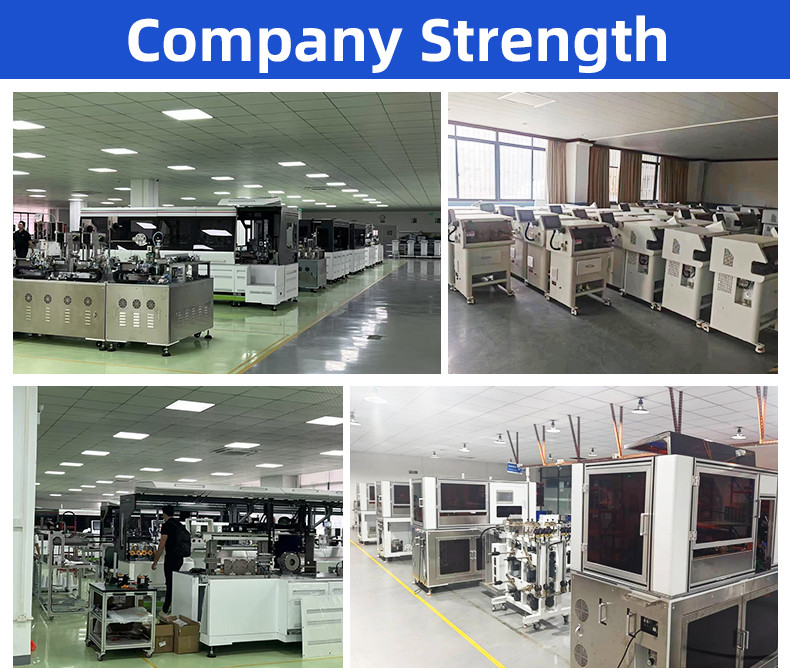

Dongguan Turing Automation Technology Co., Ltd. was founded in 2008 and is located in Dongguan City, Guangdong Province. The company specializes in the production of: fully automatic terminal crimping machines, fully automatic automatic-automatic terminal crimping and tin-plating machines, ultra-quiet energy-saving terminal machines, silent copper strip machines, computerized wire cutting and stripping machines, coaxial wire stripping machines, fully automatic nylon cable tie machines, fully automatic winding and strapping machines, computerized heat shrinkable tube cutting machines, terminal machine molds, knife molds, and new energy automatic wire harness processing equipment, etc. It mainly serves wire harness processing enterprises in the automotive, motorcycle, electronics, household appliances, electrical and other industries.
