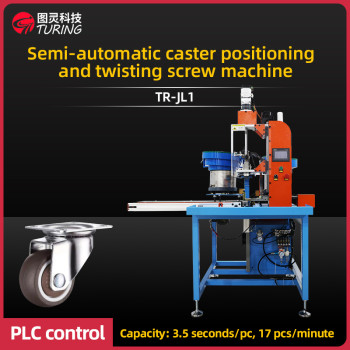

TR-JL1 Semi-automatic caster positioning and twisting screw machine

group name: Caster Assembly Machine

Min Order: 1 piece

brand name: Turing

model: TR-JL1

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Mon, 12 May 2025 03:54:01 GMT

contact supplier

Paramtents

Speed 17pcs/min
Working Air Pressure 0.55-0.8MPa
Equipment Size 1495x1054x1568mm

Packging & Delivery

Min Order1 piece

Briefing

TR-JL1 Semi-Automatic Caster Positioning and Twisting Screw Machine

Detailed

TR-JL1 Semi-Automatic Caster Positioning and Twisting Screw Machine

Power supply : AC380V/AC220V/50HZ，1.5kW

Equipment Size : 1495x1054x1568mm

Work environment : 0.55-0.8MPa

Product efficiency : 3.5 sec/pc, 17 pcs/minute

Materials used in equipment

1) Adopt square tube mechanism frame, the main body adopts 6061 aluminum alloy and high quality steel;

2)Using Taili speed control motor, CUEC asteroid reducer, XINJIE PLC, XINJIE servo motor, and Weilantong touch screen;

3) Pneumatic components are all Star brand;

4) Mechanical standard parts are adopted Shanglong brand; 5) Sensors, proximity switches, photoelectric switches, fiber optic sensors are used in Aliflex brand.

Specificities

1)Screws and nuts are loaded by vibrating disk for fast stability and long-lasting production;

2)The screw is sent to the fixed station by direct vibration, and the automatic directional sequential feeding improves the production efficiency;

3) Locking mechanism through the planetary reducer and servo motor fast locking nut, to achieve efficient and reliable, stable locking nut;

4) Simple debugging, low noise, small machine footprint.
