TR-F680 Automatic Unwinding Machine
- group name
- Pay-off rack
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-F680
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Fri, 07 Nov 2025 12:00:50 GMT
Paramtents
Max. wire diameter 16mm
load-bearing 150kg
speed 70M/min
Function Automatic wire release
Packging & Delivery
-
Min Order1 piece
Briefing

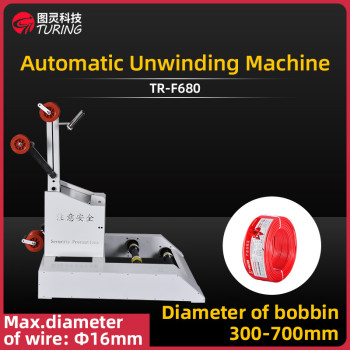

TR-F680 Automatic Unwinding Machine
Detailed
TR-F680 Automatic Unwinding Machine
Equipment name:TR-F680 Automatic Unwinding Machine
Max. wire diameter:16mm
bobbin range:300-700mm
power of release:0.55kW domestic geared motor with vector inverter,inverter controlof unwinding speed
Maximumunwind speed:70 m/min
Bobbin width:Maximum 680mm
Bobbin Lifting:Manual loading and unloading of bobbins
load-bearing:150kg
Main frame material:Made of high quality carbon steel, sheet metal bending and welding
Induction method:Frequency converter with multiple speeds, automatically adiustedaccording to the height of the wire storage wheel pull up,withoutmanualinterention.
