TR-800 Active wire release machine
- group name
- Pay-off rack
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-800
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 19 Apr 2025 10:16:42 GMT
Paramtents
Power AC380V 50/60Hz, 4kW
total weight 500kg
Feature Stable Performance
Function Automatic wire release
Packging & Delivery
-
Min Order1 piece
Briefing
TR-800 Active wire release machine.This machine consists of active payoff machine and vertical tension storage frame.Adopting 380V three-phase four-wire power supply, the specification of power line is 4 square mm.Ensure that the surrounding environment of this equipment is clean, no dust, no corrosive chemicals, no strong electromagnetic field interference. Working environment temperature of 10 ° C, do not place in extremely cold and hot environment, keep well ventilated. Regularly lubricate and protect the mechanical transmission parts.
Detailed

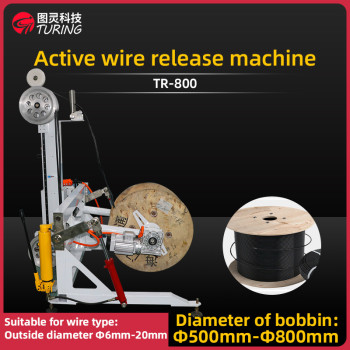

TR-800 Active wire release machine
Equipment name:TR-800 Active wire release machine
Unwinding machine dimensions:L1500xW1100xH1000mm
Tension Frame Size:L1000xW550xH2000mm
total weight:500kg
total power:4kw
power supply:AC380V50Hz/60Hz
speed control:Continuous automatic adjustment
carrying capacity:1500kgf
unwind speed:100m/min
Diameter of bobbin:Ф500mm-Ф800mm
Suitable for threads:Outside diameter Ф6mm-20mm (multi-stranded flexible core cable)
1. This machine consists of active payoff machine and vertical tension storage frame.
2. Adopting 380V three-phase four-wire power supply, the specification of power line is 4 square mm.
3. Ensure that the surrounding environment of this equipment is clean, no dust, no corrosive chemicals, no strong electromagnetic field interference. Working environment temperature of 10 ° C, do not place in extremely cold and hot environment, keep well ventilated.
4. Regularly lubricate and protect the mechanical transmission parts.
