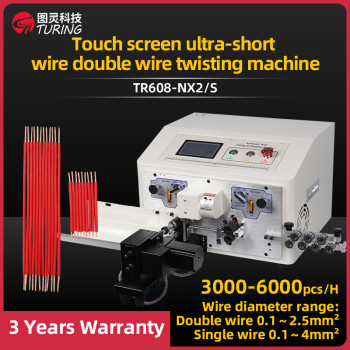

TR608-NX2/S touch screen ultra-short wire double wire twisting machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR608-NX2/S

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 18 Jan 2025 11:51:27 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR608-NX2/S touch screen ultra-short wire double wire twisting machine,Cutting core section: double line 0.1~2.5mm², single line 0.1~4mm²
CoCo +86 18666170785

Detailed

TR608-NX2/S touch screen ultra-short wire double wire twisting machine

Power supply power: AC220/110V 50/60HZ, rated 350W

Display: 4.3-inch Chinese and English switching touch screen

Stripping length: wire head:0-30mm, wire tail:0-20mm

Cutting length: 1~9999mm

Cutting core section: double line 0.1~2.5mm², single line 0.1~4mm²

Maximum diameter of conduit: ¢6

Twisted wire way: double twisted wire, can also be single twisted wire

Suitable for stripping wire: PVC, Teflon, glass wire

Stripping speed: 3000-6000 pcs/hour (L=100mm)

Driving mode: four-wheel drive (silent hybrid stepping motor, each step forward 0.1mm)

Dimension:460x470x325mm

Cutting tolerance: (0.002xL)mm

Blade material: hard tungsten steel

Warranty: 3 years
