TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-MAX3-S150
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 11:40:23 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine,Processing maximum cross-sectional area: 2.5-185mm², BV hard line maximum 120mm², BVR soft line maximum 185mm².
CoCo +86 18666170785
CoCo +86 18666170785
Detailed

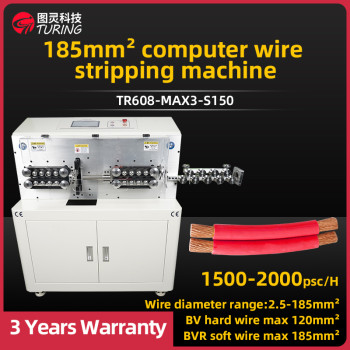

TR608-MAX3-S150 185mm² Computerized Wire Stripping Machine
Power supply power: AC220/110V 50/60HZ, 5500W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: the maximum cutting and stripping of the outer diameter of 25mm round sheath below
Processing maximum cross-sectional area: 2.5-185mm², BV hard line maximum 120mm², BVR soft line maximum 185mm².
Stripping accuracy: ±0.2mm
Cutting length: Maximum 400m
Round jacket stripping length: full stripping at the beginning of the line (1-500mm) full stripping at the end of the line (1-300mm)
Stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 1500-2000 pcs/hour (L=200mm)
Driving mode of inlet and outlet wire wheel: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Driving method of tool holder: servo motor driver, ball grinding screws
Appearance size: 1260x830x1170mm
Maximum diameter of conduit: ¢27
Blade material: imported high-speed steel
Warranty: 3 years
