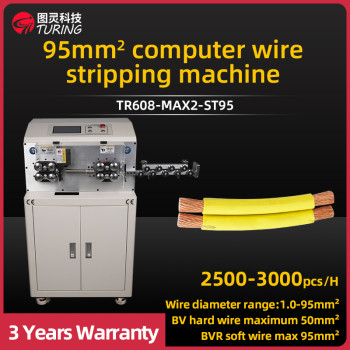

TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR608-MAX2-ST95

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Sat, 18 Jan 2025 12:00:11 GMT

contact supplier

Paramtents

Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine，Processing maximum cross-sectional area: 1.0-95mm², BV hard line maximum 50mm², BVR soft line maximum 95mm².
CoCo +86 18666170785

Detailed

TR608-MAX2-ST95 95mm² Computerized Wire Stripping Machine

Power supply power: AC220/110V 50/60HZ, 1500W

Display mode: 7-inch Chinese and English switching touch screen

Processing round sheath outer diameter: Maximum cut peeling outer diameter of 18mm round sheath below

Processing maximum cross-sectional area: 1.0-95mm², BV hard line maximum 50mm², BVR soft line maximum 95mm².

Stripping accuracy: ±0.2mm

Cutting length: Max. 100m

Stripping length of round jacket: full stripping of wire head (1-200mm), full stripping of wire tail (1-150mm)

Stripping length: head stripping 1-100mm, tail stripping 1-100mm

Stripping speed: 2500-3000 pcs/hour (L=200mm)

Inlet and outlet wire wheel drive mode: silk rod motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment

Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)

Appearance size: 675x600x1180mm

Maximum diameter of conduit: ¢22

Blade material: imported high-speed steel

Warranty: 3 years
