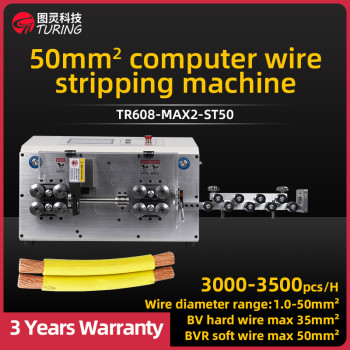

TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-MAX2-ST50
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 11:47:04 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine，Processing maximum cross-sectional area: 1.0-50mm², BV hard line maximum 35mm², BVR soft line maximum 50mm².
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR608-MAX2-ST50 50mm² Computerized Wire Stripping Machine
Power supply: AC220/110V 50/60HZ, 800W
Display mode: 7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: the maximum cutting and stripping of the outer diameter of 13mm round sheath below
Processing maximum cross-sectional area: 1.0-50mm², BV hard line maximum 35mm², BVR soft line maximum 50mm².
Stripping accuracy: ±0.2mm
Cutting length: Max. 100m
Stripping length of round jacket: full stripping of wire head (1-200mm) full stripping of wire tail (1-150mm)
Stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 3000-3500 pcs/hour (L=200mm)
Inlet and outlet wire wheel drive mode: screw motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Appearance size: 650x570x425mm
Maximum diameter of conduit: ¢17
Blade material: imported high-speed steel
Warranty: 3 years
