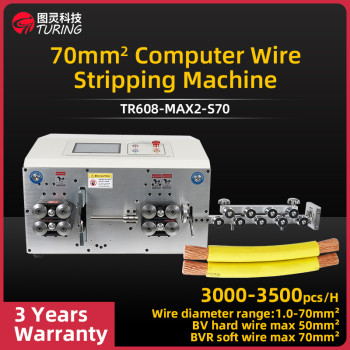

TR608-MAX2-S70 70mm² Computerized Wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-MAX2-S70 70mm²
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 13:59:15 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR608-MAX2-S70 70mm² Computerized Wire Stripping Machine,Processing maximum cross-sectional area: 1.0-70mm², BV hard line maximum 50mm², BVR soft line maximum 70mm².
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR608-MAX2-S70 70mm² Computerized Wire Stripping Machine
Power supply: AC220/110V 50/60HZ, 2000W
Display:7-inch Chinese and English switching touch screen
Processing round sheath outer diameter: maximum cut peeling outer diameter of 15 mm round sheath below
Processing maximum cross-sectional area: 1.0-70mm², BV hard line maximum 50mm², BVR soft line maximum 70mm².
Stripping accuracy: ±0.2mm
Cutting length: Max. 100m
Round jacket stripping length: wire head full stripping (1-200mm) wire tail full stripping (1-150mm)
70 square stripping length: head stripping 1-100mm, tail stripping 1-100mm
Stripping speed: 3000-3500 pcs/hour (L=200mm)
Inlet and outlet wire wheel drive mode: screw motor lifting wheel, inlet and outlet wire pressure wheel up and down automatic adjustment
Driving mode: 8 wheels belt drive (silent hybrid stepping motor, each step forward 0.1mm)
Driving method of tool holder: servo motor driver, ball grinding screws
Dimension: 650x570x425mm
Maximum diameter of conduit: ¢20
Blade material: imported high-speed steel
Warranty: 3 years
