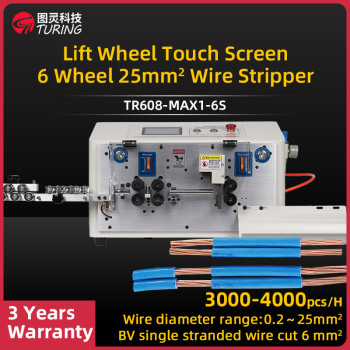

TR608-MAX1-6S Lift Wheel Touch Screen 6 Wheels 25 Square Wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-MAX1-6S
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 13:47:19 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire stripping machine
Feature Stable Performance
Warranty 3year
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR608-MAX1-6S Lift Wheel Touch Screen 6 Wheels 25 Square Wire Stripping Machine,Wire diameter range:0.2～25mm² ,BV single stranded wire cut 6mm²,Production efficiency: 3000-4000pcs/h (L=100mm)
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR608-MAX1-6S Lift Wheel Touch Screen 6 Wheels 25 Square Wire Stripping Machine
Power supply: AC220/110V50/60Hz, rated 450W
Display mode: 4.3 inches in English switching touch screen
Cutting length:1~9999mm
Cutting tolerance: ± (0.002xL)mm
Suitable for stripping wire: PVC, Teflon, glass wire
Stripping speed:3000-4000pcs/hour(L=100mm)
Size:560x460x365mm
Stripping length: wire head 0-80mm, wire tail 0-50mm
Maximum diameter of conduit:￠11
Cutting core section:0.2~25mm²,BV single stranded wire cut 6mm²
Intermediate stripping: 16 stripping
Warranty: 3 years
Drive mode: six-wheel drive (silent hybrid stepper motor, each step forward 0.1mm)
