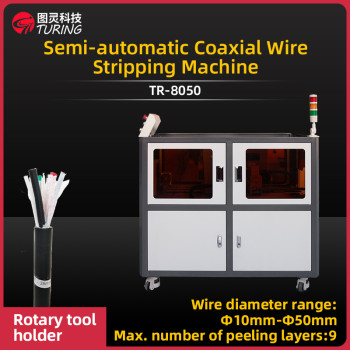

TR-8050 Semi-automatic Coaxial Wire Stripping Machine
- group name
- Semi-automatic Coaxial Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-8050
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 13:56:41 GMT
Paramtents
Power AC220V/50HZ,
Function Cable Stripping Machine
Cable diameter Φ10mm-Φ50mm
Packging & Delivery
-
Min Order1 piece
Briefing
TR-8050 Semi-automatic Coaxial Wire Stripping Machine
Detailed

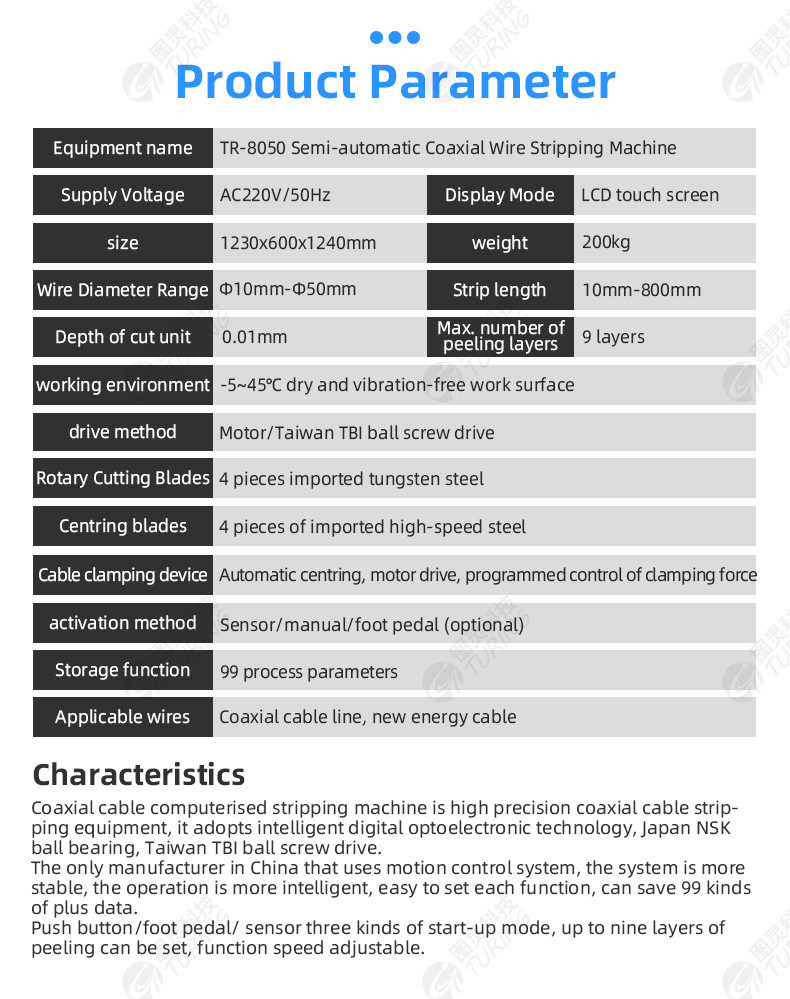

TR-8050 Semi-automatic Coaxial Wire Stripping Machine
Power supply: AC220V 50Hz
Size and weight: 1230x600x1240mm, 200kg
Wire diameter range: Φ10mm-Φ50mm
Stripping length: 10mm-800mm
Cutting depth unit: 0.01mm
Maximum number of peeling layers: 9 layers
Working environment: -5~45 degrees dry and vibration-free working surface

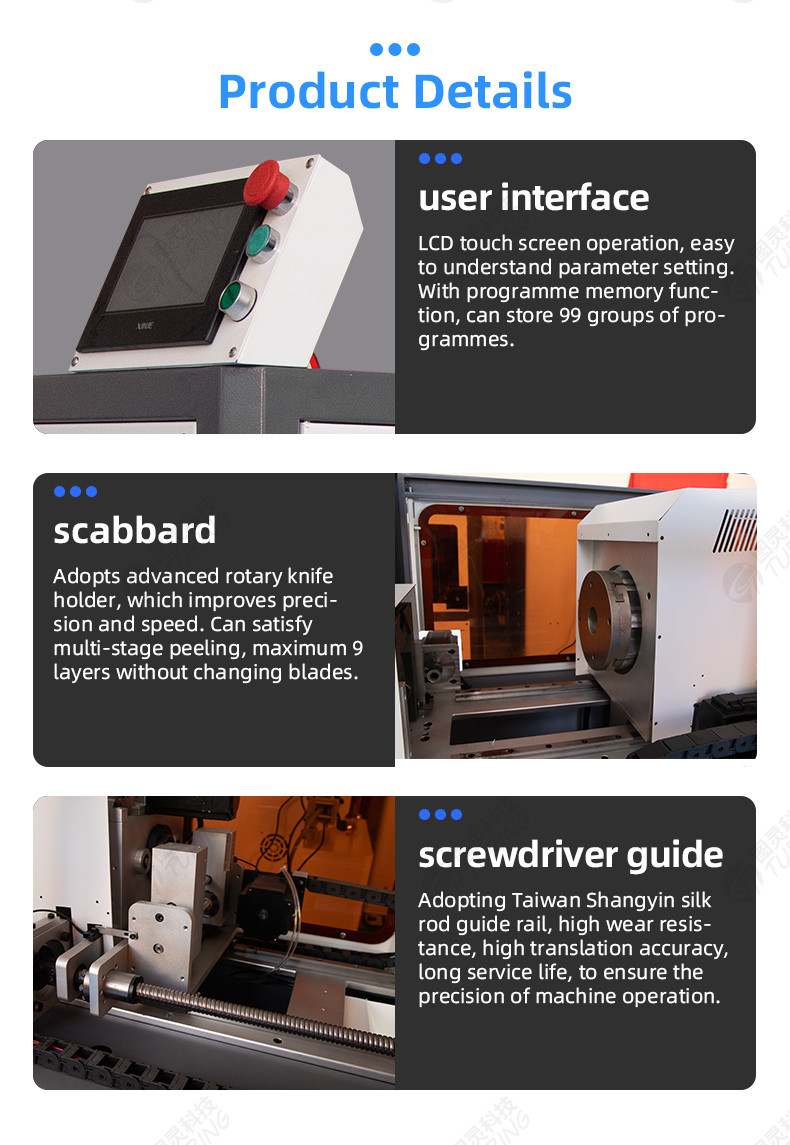

Driving mode: motor / Taiwan TBI ball screw drive

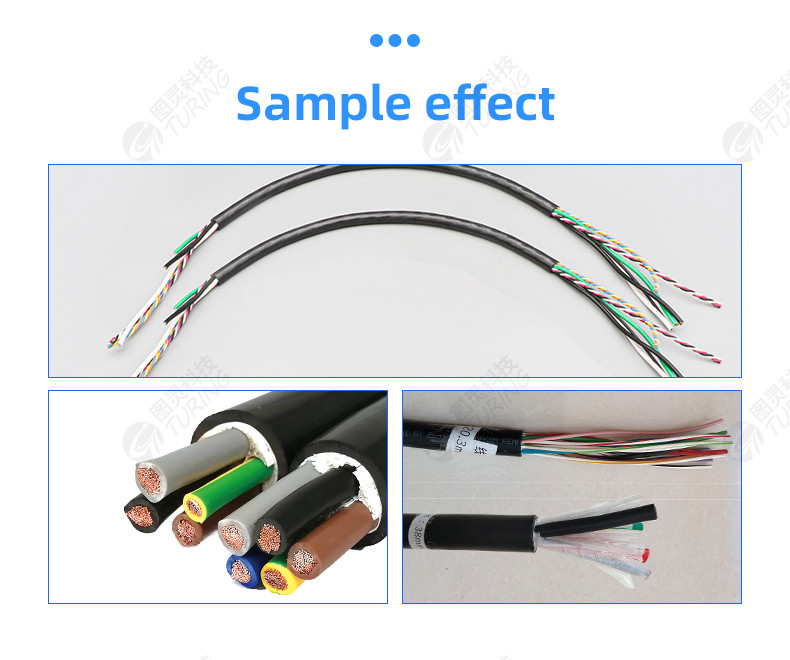

Applicable wire: coaxial cable, new energy cable
Rotary cutting blade: 4 pieces of imported tungsten steel
Centering blade: 4 pieces of imported high-speed steel
Clamping device: automatic centering, motor drive, clamping force program control
Start-up mode: induction / manual / foot pedal (optional)
Storage function: 99 kinds of processing parameters
