TR-608-YHT6-4 Four-wheel intelligent round sheath Inner and outer cable wire stripping machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-YHT6-4
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Fri, 22 Nov 2024 01:58:43 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact CoCo +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-608-YHT6-4 Four-wheel intelligent round sheath Inner and outer cable wire stripping machine
CoCo +86 18666170785
CoCo +86 18666170785
Detailed

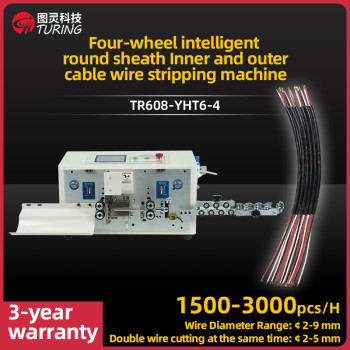

TR-608-YHT6-4 Four-wheel intelligent round sheath Inner and outer cable wire stripping machine
Size: 560mm × 460mm × 365mm
Weight: 40KG Power 350W
Power supply: 220V/110V 50HZ/60HZ
Display mode: Chinese and English operation interface can be switched with each other (using a 5-inch touch screen)
Processing round sheath outer diameter: ¢ 2-9 mm double line cutting at the same time stripping: ¢ 2-5 mm
Processing the number of cores: 2-core, 3-core, 4-core, 5-core
Air pressure: 0.8Mpa
Maximum diameter of conduit: ¢ 10
Stripping accuracy: ± 0.2mm Stripping core length: head stripping 0-20MM, tail stripping 0-20MM
Cutting length: Maximum 100m
Round sheath peeling length: head peeling (1-150mm) tail peeling (1-100mm)
Blade material: imported high-speed steel
Stripping speed: 300mm length unit, 1500-3000 roots / hour
Drive mode: four-wheel drive (silent hybrid stepping motor, each step forward 0.1mm)
