TR608-YHT5 Intelligent Round Jacket Inside and Outside cable wire Stripping Machine
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR608-YHT5
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 19:25:44 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
-
Min Order1 piece
Briefing
TR-508-YHT4 Accelerated version round sheath inner and outer double layer peeling machine
Lily +8613715588365
Lily +8613715588365
Detailed

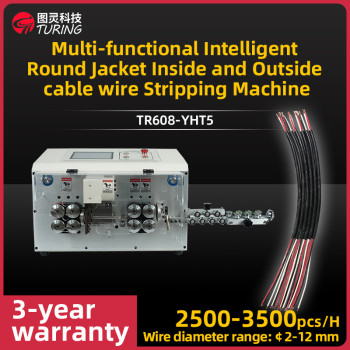

TR-608-YHT5 Multi-functional Intelligent Round Jacket Inside and Outside cable wire Stripping Machine
Power supply: AC220/110V 60HZ/50HZ, 850W
Display mode: 7-inch Chinese English switching touch screen
Size and weight: 560x460x400mm, 90kg
Outer diameter of processed round sheath: ￠ 2-12mm
Blade material: imported high-speed steel
Processing line cores: 2 cores, 3 cores, 4 cores, 5 cores
Maximum diameter of the catheter: ￠ 13
Air pressure: 0.8Mpa
Peeling accuracy: ± 0.2mm
Cutting length: maximum 100m
Warranty period: 3 years
Two peeling lengths: head half peeling (1-350mm) and tail half peeling (1-150mm)
Length of round sheath peeling: head peeling (1-210mm), tail peeling (1-110mm)
Wire stripping speed: 2500-3500 pieces/hour (L=300mm)
Drive mode: 8-wheel drive (silent hybrid stepper motor, advancing 0.1mm per step)
