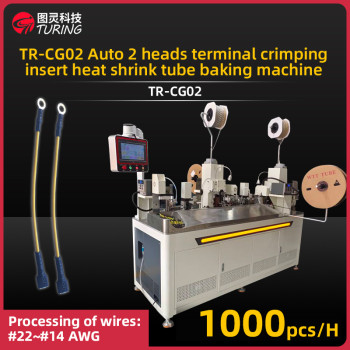

TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube baking machine
- group name
- Inserting Tube Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-CG02
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Sat, 18 Jan 2025 13:55:39 GMT
Paramtents
Power Single phase AC200V~242V 50/60Hz 10A
Application Wires are cut, stripped at one end, stripped at bo
Feature Stable Performance
Warranty 1year
Contact Coco : +86 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube baking machine
Detailed
TR-CG02 Auto 2 heads terminal crimping insert heat shrink tube
baking machine
function：Wires are cut, stripped at one end, stripped at both ends,
crimped at both ends, crimped at both ends and baked in sleeves.
Processing of wires：AWG#22~#14
capacity：Wire length 80-150mm: approx. 1000 pcs/hour.
Special wire: approx. 800 pcs/hour.
Cutting accuracy：Line length below 100mm Error 0.2+(line length x 0.002)
Line length above 100mm Error 0.5+(line length x 0.002)
Processing length：Leave rubber in the middle 66mm~99999mm
Strip length：Front end 0.5~8.0mm; Rear end 0.1~10.0mm
Depth of cut：Max. adjustment 5.50mm, resolution 0.01mm
sensor：Low air pressure, wire presence, abnormal pressure,
abnormal wire entry.
power supply：Single phase AC200V~242V 50/60Hz 10A
compressed air：0.5 MPa (5 kgf / cm2) clean dry gas
Size/Weight：W800 *D1800*H1800 mm, approx. 800KG
