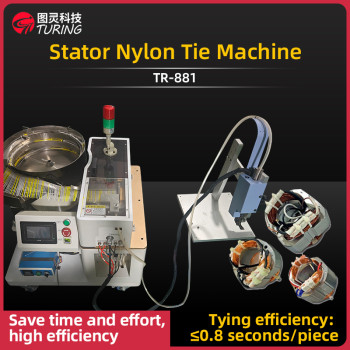

TR-881 Stator Nylon Tie Machine

group name: Cable Winding and Tying Machine

Min Order: 1 piece

brand name: Turing

model: TR-881

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:19:37 GMT

contact supplier

Paramtents

Power Single-phase 220V
Application Automatic nylon cable tie machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785

Packging & Delivery

Min Order1 piece

Briefing

TR-881 Stator Nylon Tie Machine,widely used in a variety of stator, wire harness, electronic connecting wire, home appliances and other industry positions

Detailed

TR-881 Stator Nylon Tie Machine

power supply	Single-phase 220V	Voltage range	±10%
compressed air	0.55 ±0.5Mpa	Ties specifications	2.5x100mm
work system	Continuous operation 24 hours a day
operating temperature	0~60℃	Operating humidity	60~95%RH
wire harness diameter	1-18mm	Tie head reserved length	0.5-3mm
Failure rate	≤1‰	Troubleshooting time	≤1s
Tie Tightness Ratio	After the workpiece tie, the tie does not slide, adjustable tightness
Tray holds ties at a time	≤600 pieces	Tightening force range	2~8kg

Widely used in a variety of stator, wire harness, electronic connecting wire, home appliances and other industry positions

This equipment can realize the functions of automatic discharging, feeding, coiling, tightening and cutting of disordered ties as follows:

1、Put the disorderly tie into the automatic discharging device, realize the tie through the pipeline to the gun head;

2, artificial foot pedal to start the foot pedal, to achieve automatic feeding, tape, tightening, cutting and collecting waste and other actions, collecting waste process is strictly prohibited waste material into the two components;

3、Shear the line after the wire tie head to stay tail, minimum 0.5 mm, maximum adjustable tie all the remaining tail material.
