TR-8030HYJS Automatic 30 square 16mm round sheathed wire inner and outer jacket stripping machine with take-up stand
- group name
- Computer Wire Stripping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-8030HYJS
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 16:44:05 GMT
Paramtents
Power AC220V/50HZ,
Name wire inner and outer sheath stripping machine
Contact coco 0086 18666170785
Packging & Delivery
-
Min Order1 piece
Briefing

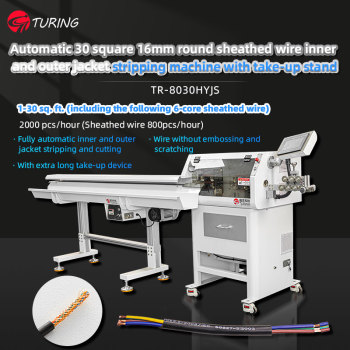

TR-8030HYJS Automatic 30 square 16mm round sheathed wire inner and outer jacket stripping machine with take-up stand.
Fully automatic inner and outer jacket stripping and cutting. Wire without embossing and scratching. With extra long take-up device.Round sheathed wire stripping outer skin, core wire stripping at the same time, cutting a complete;Round sheathed wires are cut off at one time, double-ended inner and outer stripping, outer skin without indentation, inner and outer skins are stripped together.
Fully automatic inner and outer jacket stripping and cutting. Wire without embossing and scratching. With extra long take-up device.Round sheathed wire stripping outer skin, core wire stripping at the same time, cutting a complete;Round sheathed wires are cut off at one time, double-ended inner and outer stripping, outer skin without indentation, inner and outer skins are stripped together.
Detailed
TR-8030HYJS fully automatic round sheathed wire inner and outer sheath stripping machine
Applicable wires : New energy cable, automobile power distribution box large
square cable, BV/BVR/PVC wire, etc.
Functionality : ①Wire, cable, fully automatic cutting and stripping.
② multi-core sheathed wire, outer skin peeling, inner core
wire peeling, cutting off a complete.
Strip length : Front-end full stripping: 1-200mm, front-end half stripping
1-500mm; rear-end full stripping: 1-80mm.Rear end half
stripped 1-200mm (different lines, the situation is different,
to the actual test)
Catheter Diameter : Φ 16
Cutting length : 1mm-99999.99mm
Stripping range : 1-30 sq. ft. (including sheathed wires up to 6 cores)
Production capacity : 2000 pcs/hour (800 pcs/hour for sheathed wire) depending
on the length and size of the wire.
Cutting Tolerance : Within 0.002*L (L=cutting length)
Display method : 7" true color touch screen
Cutting tool materials : High quality imported high speed steel
Driving method : 16-wheel drive (silent hybrid stepper motor, servo tool holder)
Wire feeding method : Belt feeding, no embossed marks and scratches on the cable
Automatic 30 square 16mm round
sheathed wire inner and outer jacket
stripping machine with take-up stand.Fully automatic inner and outer jacket stripping and cutting. Wire without embossing and scratching. With extra long take-up device.
Round sheathed wire stripping outer skin, core wire stripping at the same time, cutting a complete;Round sheathed wires are cut off at one time, double-ended inner and outer stripping, outer skin without indentation, inner and outer skins are stripped together.
