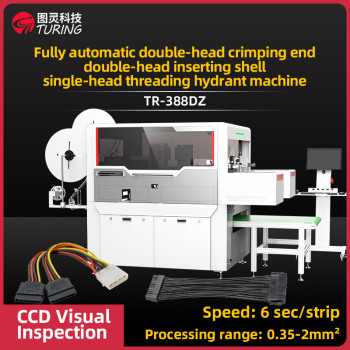

TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
- group name
- Plastic Shell Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-388DZ
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Wed, 04 Dec 2024 01:08:28 GMT
Paramtents
Power AC220V/50HZ
Scope of processing 0.35-2 mm²
Feature Stable Performance
Warranty 1year
Packging & Delivery
- 180cm x120cm x150cm
-
Min Order1 piece
Briefing
TR-388DZ Fully automatic double-head crimping enadouble-head inserting shellsingle-head threading hydrant machine
Detailed
TR-388DZ Fully automatic double-head crimping enddouble-head inserting shellsingle-head threading hydrant machine
Power supply : 220V 4900W
Size&weight : 1600mm*2200mm*2050mm,Approx. 1000kg
Scope of processing : 0.35-2 mm² (to be confirmed by sample)
Wire processing length : 140mm-600mm (length accuracy: 0.003*L length)
Strip length : 0--10mm at both ends (special sizes can be altered)
Detection function : Visual Inspection, Missing Line Inspection, Air Pressure Inspection,
Take-up Inspection, Draw Inspection, Pressure Inspection
Air pressure : 4.5--6kgf (dry air)
Speed : 6 seconds/root (the actual speed of customised parts is finalis
Multi-functional:
① terminal crimping bad reset will cut off the terminal and then the next step in the process;
② wire shortage and knot alarm;
③ can be set to wear shells through the bolt position;
④ can be worn at one end of a kind of rubber shells, the other end of the other end to wear the same shells of two.
High quality:
① equipment using servo plus imported slide rail imported high-precision structure configuration, to ensure the stability and durability of the equipment.
② High speed - servo length measurement module, traverse using a screw linkage, to achieve the perfect unity of precision and speed.
