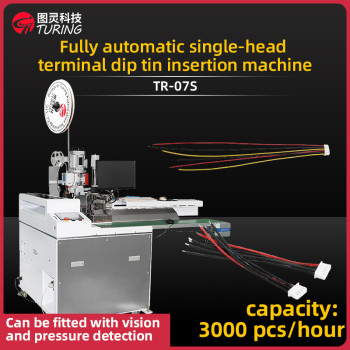

TR-07S Fully automatic single-head terminal dip tin insertion machine
- group name
- Plastic Shell Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-07S
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 21 Nov 2024 17:13:51 GMT
Paramtents
Power AC220V/50HZ
wire diameter AWG#14-AWG#32
Feature Stable Performance
Warranty 1year
Packging & Delivery
- 180cm x120cm x150cm
-
Min Order1 piece
Briefing
TR-07S Fully automatic single-head terminal dip tin insertion machine
Detailed
TR-07S Fully automatic single-head terminal dip tin insertion machine
Product name: TR-07S single-head tin-dipping and inserting machine
Functions: Terminal punching, cutting, twisting, tin dipping, peeling, and plastic shell piercing
Accuracy: +0.1mm
Detection: Rubber shell detection, peeling detection, air pressure detection, end detection
Outer diameter: AWG#14-AWG#32 (can be modified according to the wire material)
Processing efficiency: 3000+finished products/hour
Cutting line length: 40-918mm (length can be changed)
Peeling length: 1-10mm (can be changed)
Pressure: 2.0-4T
Air pressure: 5MPA-6MPA
Dimensions: 1510x780x1370
Weight: 399KG
5P core wire single end stripped and inserted in shell, 276 articles/hour 5P core wire stripped and shelled at both ends,938articles/hour
Solve the problem that the sheath line can not be automatically inserted into the rubber shell due to theinability to separate the colors.
Sheathed wire automatic stripping corewire terminals Crimp Plug Shelt
Manual color separation and simultaneous insertion of rubbel shells in an orderly manner
