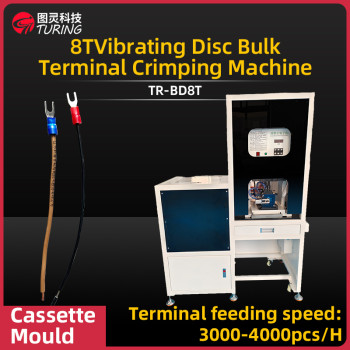

TR-BD8T 8T Vibrating Disc Bulk Terminal crimping Machine
- group name
- Semi-automatic Bulk Terminal Crimping Machine
- Min Order
- 1 piece
- brand name
- Turing
- model
- TR-BD8T
- Nearest port for product export
- Yantian, Huangpu, Shekou, Nansha
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery
- Acceptable payment methods
- T/T, MoneyGram, Westem Union, Cash
- update time
- Thu, 28 Nov 2024 11:43:54 GMT
Paramtents
Power AC220V/50HZ,
Name Mute Terminal Machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
-
Min Order1 piece
Briefing
TR-BD8T 8T Vibrating Disc Bulk Terminal crimping Machine
Coco 0086-18666170785
Coco 0086-18666170785
Detailed
TR-BD8T 8T Vibrating Disc Bulk Terminal crimping Machine
Power supply:AC 220V/50Hz
Vibrating disc power:120W
Motor power:250W
Machine light:220V 1W
Pressure capability:20KN 8T
Slider Stroke:35mm (40mm)
Regular size:500x1050x1360mm
Special slide type:500x1050x1360mm
Weight:Approx. 140kg-170kg
Closed height:26mm
Closed height adjustment:10mm
function
1、Based on mute terminal machine, adopting card-type mould, easy andconvenient to disassemble;
2、Microcomputer chip control, user-friendly programme design, safe andreliable operation;
3、Replacement of expensive connected terminals, using more affordable looseterminals;
4、Centrifugal vibration feeding, frequency conversion speed control, cylinderprecise positioning,riveting standard unity;5、Running speed is comparable with the banded terminals, saving labour andcost,more cost-effective advantage;6、It can be used as a separate mute terminal machine when necessary, and itcan be suitable for 800#,2000# straight and horizontal moulds.
operation
Manual operation part.
1, Manually put the terminal material into the vibrating disc.
2, Manually put the cut wires into the terminals to be pressed.
Machine operation part: 1.
1,Automatically arrange and feed the terminals.2,Automatically feed the terminals into the specified die. (Conventional terminalfeeding speed of 60 to 70 particles per minute! Hourly speed of 3000 a 4000Note:specialterminals except )3, into the line to start the foot switch, crimping is complete.
