TR-880H fully automatic sheathed core wire integrated machine

group name: Computer Wire Stripping Machine

Min Order: 1 piece

brand name: Turing

model: TR-880H

Nearest port for product export: Yantian, Huangpu, Shekou, Nansha

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, DDP, Express Delivery

Acceptable payment methods: T/T, MoneyGram, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:42:16 GMT

contact supplier

Paramtents

Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785

Packging & Delivery

Min Order1 piece

Briefing

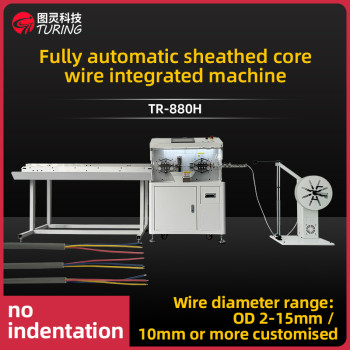

TR-880H fully automatic sheathed core wire integrated machine
Coco 0086-18666170785

Detailed

TR-880H fully automatic sheathed core wire integrated machine

Display Mode:10 inch LCD touch screen

Rating power:0.75kW

Size&weight:945x615x1270mm,248kg

Power supply:AC220V/110V 50/60Hz

Pneumatic:0.4~0.6Mpa

Cutting length:0.1-100000mm

Core processing:Inner core wire 1-6 pcs

Length accuracy:±（0.2+0.002L）mm

Processing Diameter:2-15 OD/10 or more customised

Wire Type:Multi-core round sheathed wire, flat sheathed wire

Core wire stripping length:Multi-core round sheathed wire, flat sheathed wire

Outer skin peeling length:Wire head: front 200mm; wire tail: back end 150mm

Drive method:Belt feed, eight-wheel drive, precision servo motor drive

Characteristics

1. This machine is mainly for round sheathed cable, flat sheathed cable peeling corewire processing, can achieve automatic cut off the tail, peeling the outer skin, peel-ing the inner core skin function.

2. Adopting belt wheel to feed the wire, large contact area, high precision, no sur-face indentation.

3. Adopt servo drive, subdividing way to control the length, small error.

4. Display mode: touch screen interface, 10-inch touch screen, Chinese and Englishcan be switched.

5.Operation mode: it can realise semi-automatic manual operation of length mea.surement, cutting, multi-layer peeling, middle peeling and automatic note produc-tion, which is easy to operate, thus greatlyimproving the efficiency;

6. The machine is powerful, reserved for a number of ports, for supporting someauxiliary equipment input and output devices.

7. Auxiliary equipment: automatic wire feeder, take-up machine, robot, windingmachine and so on.
